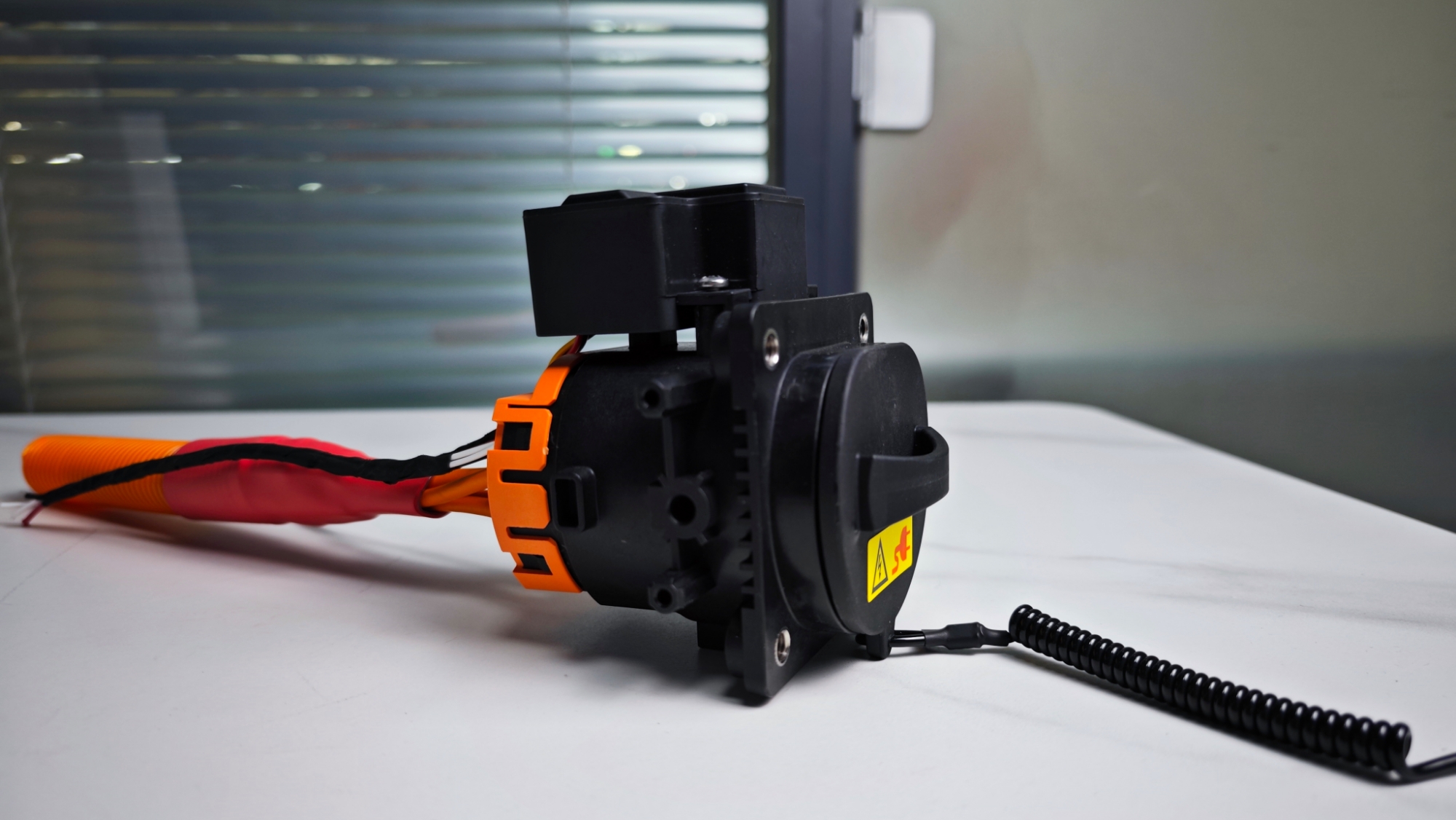

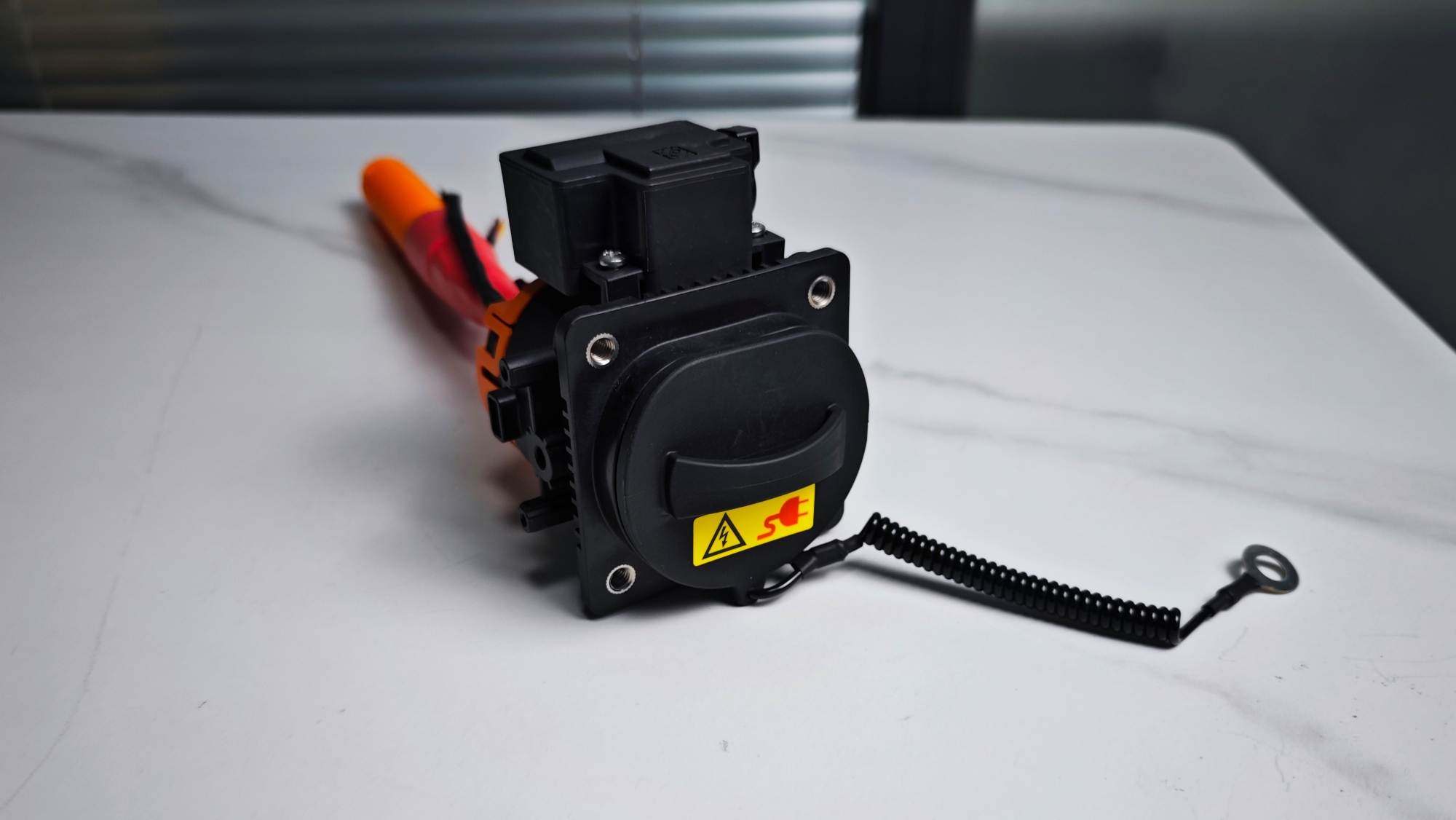

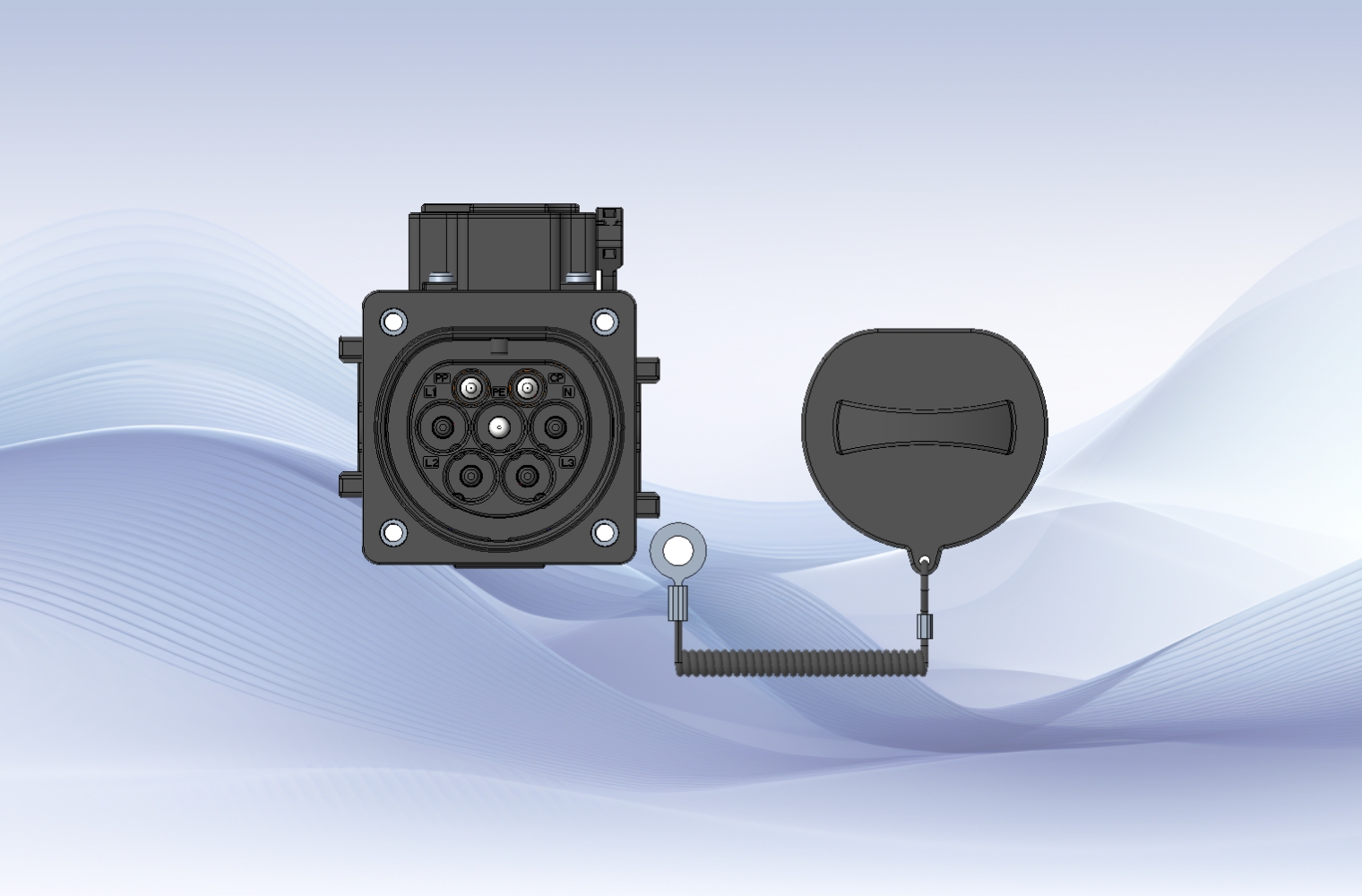

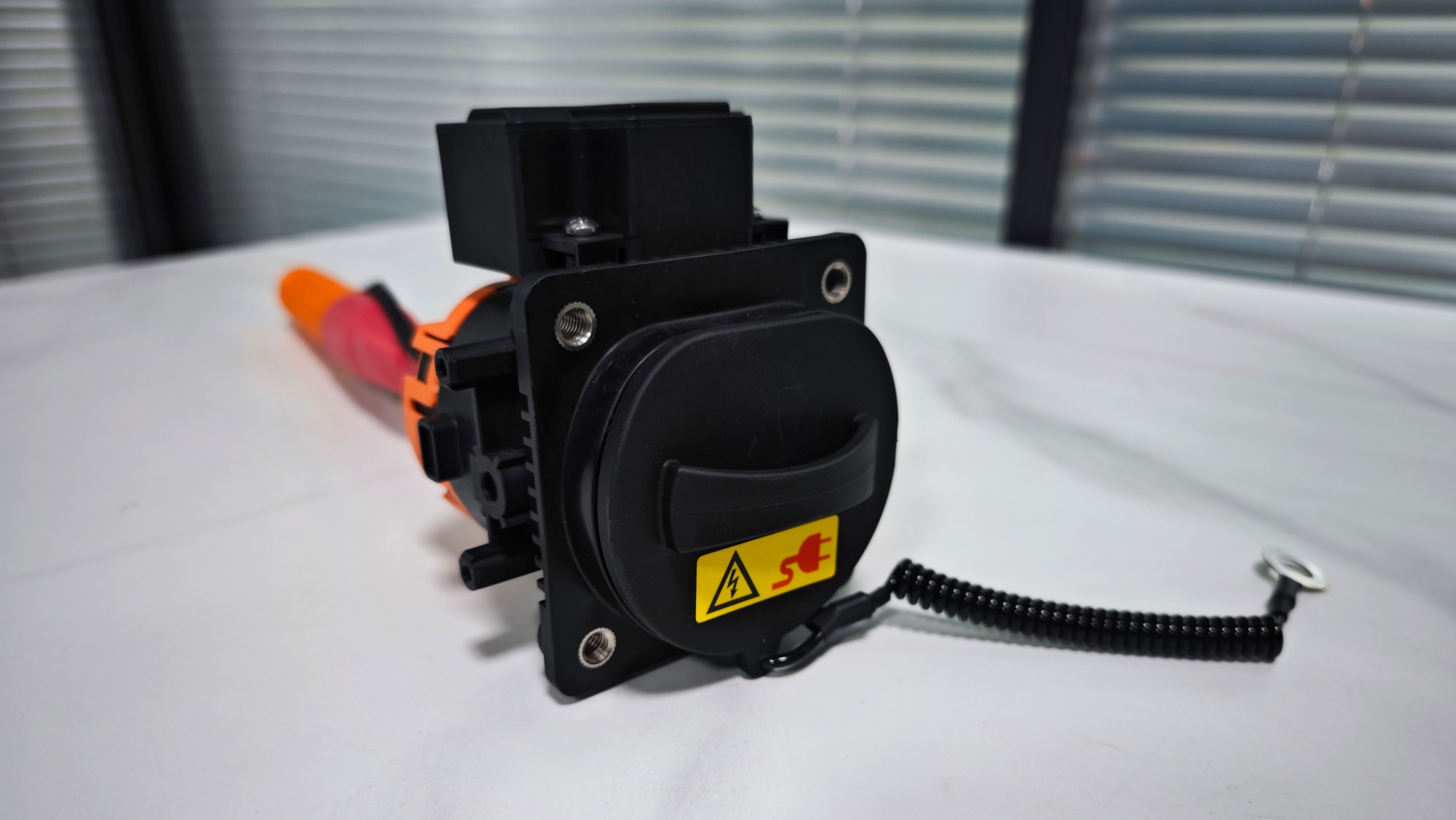

RussianSCZ series European standard TYPE 2-Ⅱ charging socket
It is installed on the electric vehicle and can realize charging function by cooperating with a European standard charging gun. The product meets IEC 62196.2 and ROHS2.0 requirements.
-
16A/32A
Rated current
-
250V/480V
Rated voltage
-
IP44 (with accessories)
Protection voltage
-
TUV CE Approved
Certification
Technical Parameters
| Mechanical performance | ||
| Mechanical life | 10,000 times | |
| Mechanical vibration shock |
GB/T 2323.10-2008 Test Fc; Guidance; Vibration 10Hz～25Hz 1.2mm 25Hz～500Hz 30m/s² |
|
| Electrical performance | ||
| Rated current | L1/L2/L3/N: 16A/32A; PP/CP: 2A | |
| Rated voltage |
L1/L2/L3/N: 250V AC single-phase/480V AC three-phase; PP/CP 30V DC |
|
| Withstand voltage |
Among L1, L2, L3, N and PE: 2000V AC (room temperature); Between PP and CP: 500V AC (room temperature) |
|
| Insulation resistance | 1000V DC, ≥ 5000 MΩ (normal temperature and humidity); ≥ 100 MΩ (damp heat state) | |
| Temperature rise of terminal | <50K | |
| Environmental performance | ||
| Degree of protection | IP44 (with accessories) | |
| Operating temperature | -30℃～+40℃ | |
| Salt spray grade | 96H | |
| Main materials | ||
| Shell | PA | |
| Insulator | PA | |
| Sealings | Silicone rubber | |
| Contacts | Copper alloys | |
Unfold
Features
photos
