Chinese National Standard DC Non-fast-swap Charging Socket

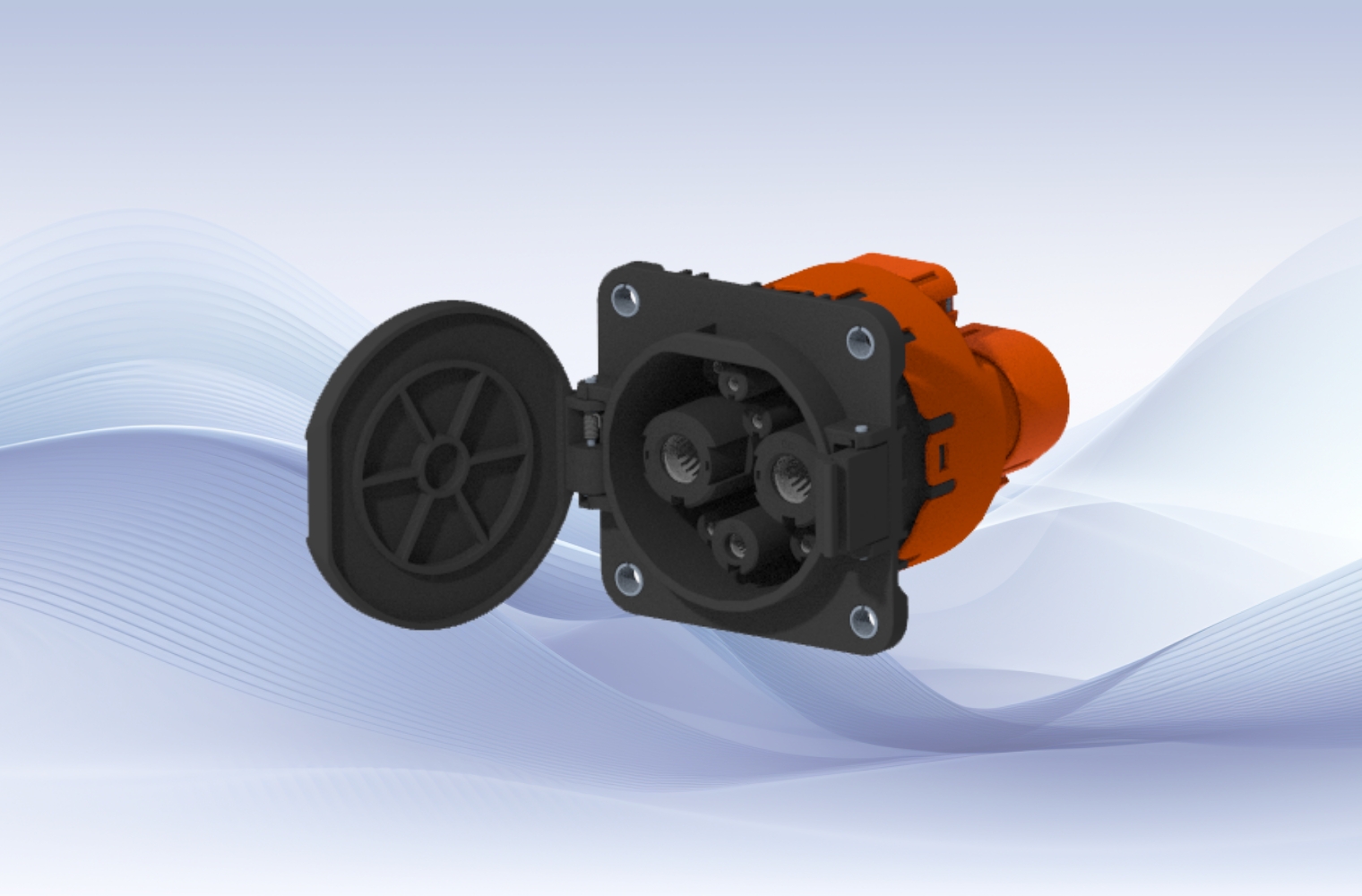

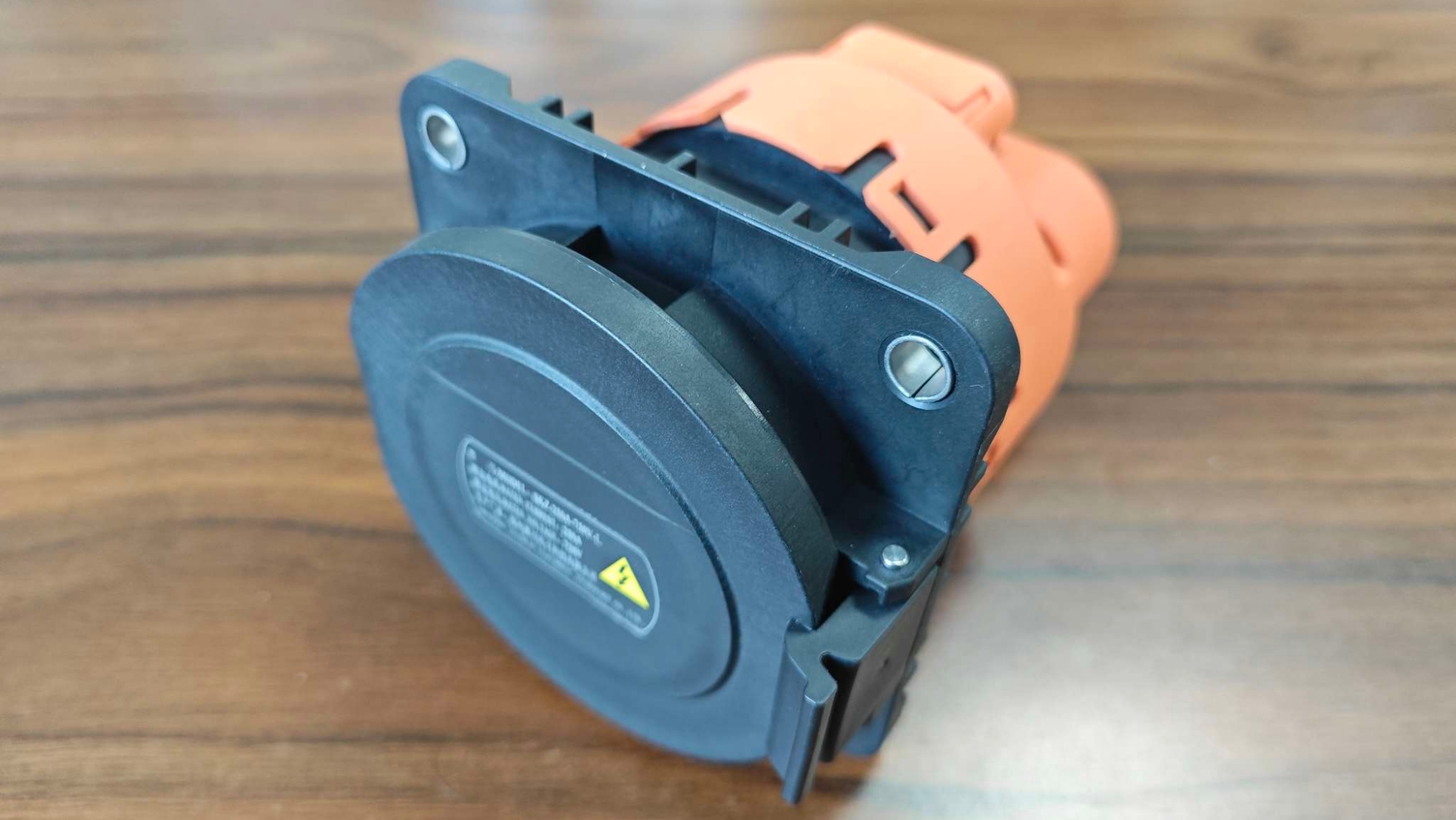

The Chinese national standard DC non-fast-swap charging socket is installed on the electric vehicle, and achieves the DC charging function via the DC charging gun. The product meets GB/T 20234.3-2015.

10,000 times

Mechanical life
-30~50°C

Operating temperature
750/1000V

Rated voltage
DC 80~250A (80A, 125A, 200A, 250A)

Rated current

Get a quote WhatsApp

Technical Parameters

Mechanical performance
Mechanical life	10,000 times
Mechanical vibration shock	GB/T 2323.10-2008 Test Fc; Guidance; Vibration 10Hz～25Hz 1.2mm 25Hz～500Hz 30m/s²
Electrical performance
Rated current	DC interface: DC+/DC-: 250/200/125/80A
Rated voltage	DC interface: DC+/DC-/PE: 1000V S+/S-/A+/A-/CC2: 30V
Withstand voltage	DC+/DC-/PE: 3000V AC/1min.
Insulation resistance	1000V DC≥100MΩ (DC+/DC-/PE)
Temperature rise	<50K
Environmental performance
Degree of protection	IP55 (with accessories)
Operating temperature	-30℃~+50℃
Salt spray grade	96H
Main materials
Shell	PA
Insulator	PA
Sealings	Silicone rubber
Contacts	Copper alloys

Unfold

Features

Lightweight design

The socket is small and light, which is convenient for layout.

LV wiring harness integration

The signal terminals are installed on PCBA, conducive to centralized distribution of the LV wiring harnesses.

photos

Customer Cases

Jiangsu Wanxiang

The DC non-fast-swap charging socket is small and light with low price, so it is more often used in small passenger vehicles.
