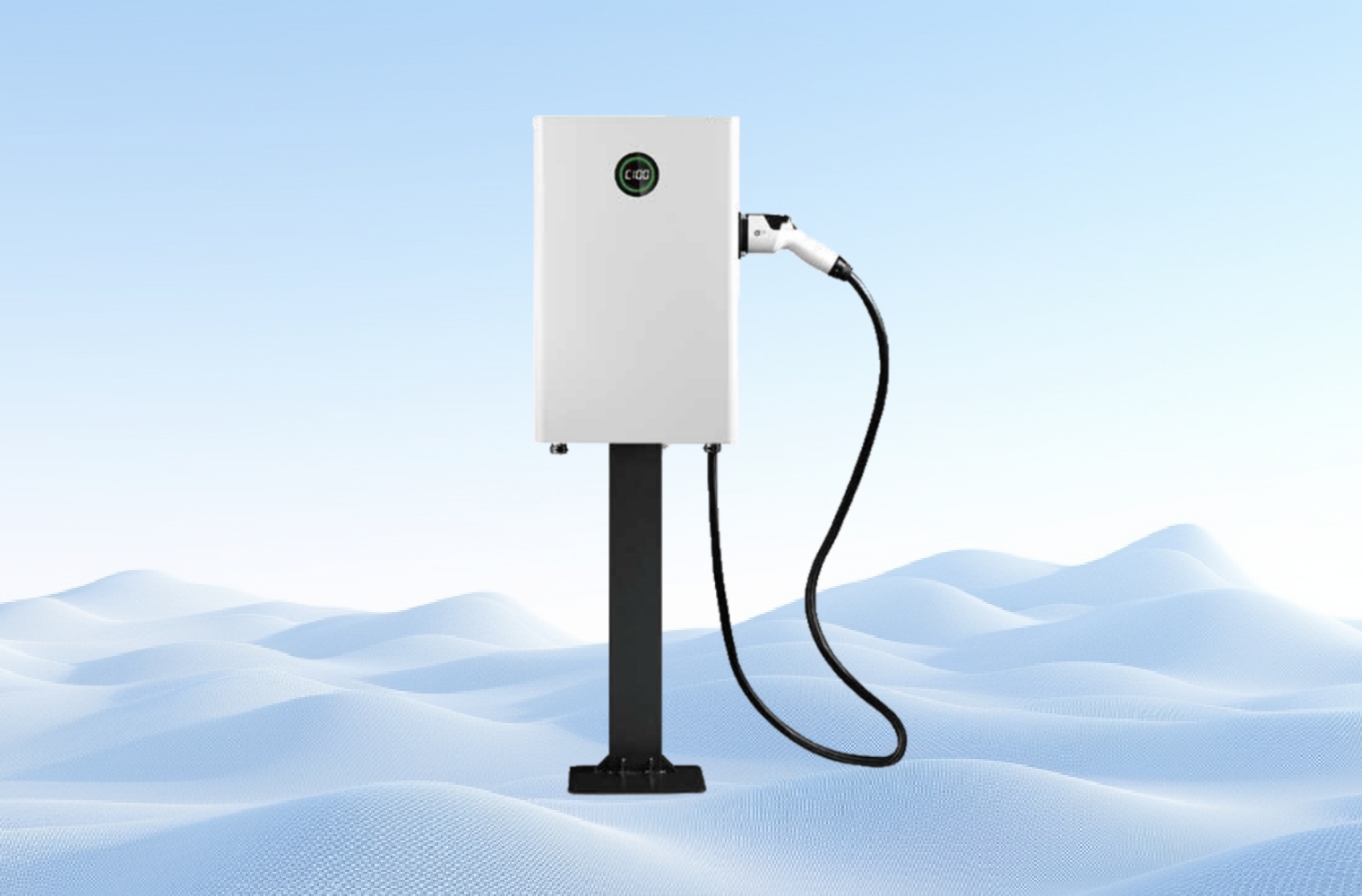

20kW Integrated DC Charger

This product is mainly used for charging services of small-capacity new energy vehicles, such as private cars and light trucks.

323-437 V; 380 V

AC input voltage (V)
45-55 Hz, 50 Hz

AC input frequency (Hz)
0-20 kW

Output power (kW)
200-750 V

Output voltage (V)

Get a quote WhatsApp

Technical Parameters

Basic electrical performance	AC input voltage	323 ～ 437VAC；380VAC
	AC input frequency	45 ～ 55Hz；50Hz
	Output power	0 ～ 20kW
	Output voltage	200 ～ 750VDC
Basic performance	Constant power range	450 ～ 750VDC
	Output current	0 ～ 44.4A
	Power factor	0.99 (full load)
	Peak efficiency	0.93
	Reference standard	GB/T 20234.1—2015, GB/T 20234.3—2015, GB/T 27930—2015, GB/T 18487.1—2015, NB/T33001—2018
Mechanical characteristics	Body size	630mm393mm145mm
	Packaging size	834mm488mm375mm
	Weight	33kg
	Input line length	Non-standard configuration
Functional features	Access method	Three-phase four-wire
	Intelligent control	Bluetooth upgrade, intelligent anti-theft, preset charging and one-button start/stop
	Protection design	Double insulation for overvoltage protection, undervoltage protection, overload protection, short circuit protection, grounding protection, overtemperature protection, low temperature protection, lightning protection and electric shock protection
	Communication interface	Bluetooth or 4G
	Noise	＜65dB
	Cooling mode	Forced air cooling
Operating environment	IP grade	IP54
	Working temperature	-30 ~ 50°C (intelligent over-temperature protection)
	Relative humidity	5% ～ 95%
	Altitude	2,000m
	Atmospheric pressure	70 ～ 106KPa
	Applicable environment	Ground of large shopping malls, office buildings and residential communities and underground parking lot

Unfold

Features

Convenient operation

The compact, one-button design ensures ease of use while maintaining simplicity, cost-effectiveness, durability, and reliable safety for efficient usage.

Versatile features

It boasts a wide charging voltage range, convenient plug-and-charge capability, exclusive privileges, and the ability to pair via Bluetooth using the VIN.

Easy to use

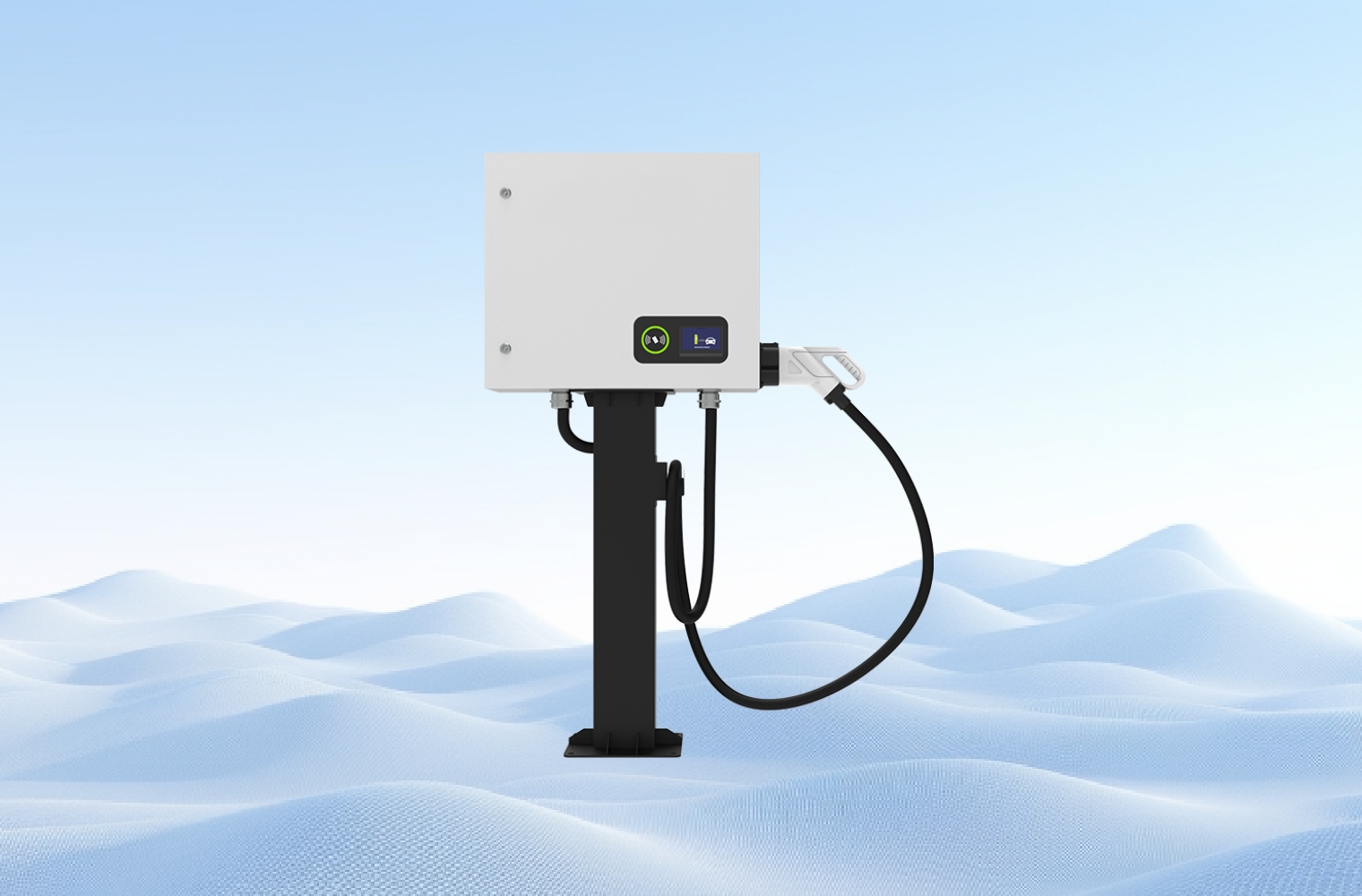

It offers easy installation with support for both column and wall-mounted installation modes. You can control the charging process and view charging information via your smartphone.
