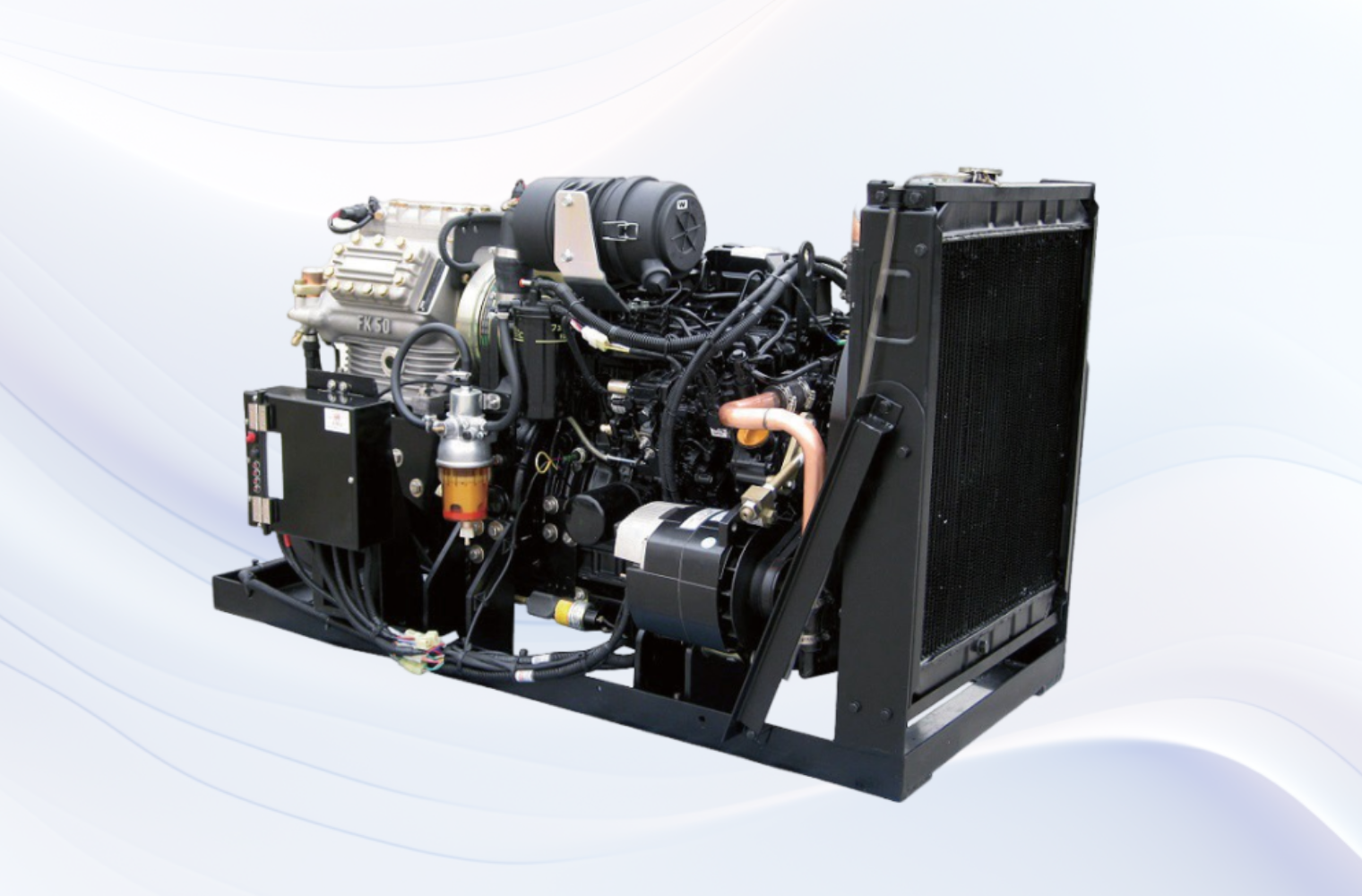

RussianDFDD Sub Engine Series
Independent unit, suitable for special vehicles like airport shuttle buses and physical examination cars requiring continued air conditioner when parking.
-
airport shuttle bus, physical examination car, etc.
Application models
-
independent unit + overhead air conditioner unit arranged on the chassis
Structural form
-
R134a
Refrigerant
-
28000-38000 kal/h
Cooling capacity
Technical Parameters
| Model | DFDD-05 | DFDD-06 | DFDD-07 |
| Cooling capacity |
28000kcal/h 33kW 112000BTU/h |
32000kcal/h 37kW 127000BTU/h |
38000kcal/h 44kW 151000BTU/h |
| Evaporation air volume (m³/h) | 6000（6pcs） | 8000（8pcs） | 8000（8pcs） |
| Condensing air volume (m³/h) | 8000（4pcs） | 10000（5pcs） | 12000（6pcs） |
| Compressor displacement (cc) | 550 | 650 | 750 |
| Refrigerant | R134a | R134a | R134a |
| Dimension (mm) LxWxH | Rooftop Option | Rooftop Option | Rooftop Option |
| DD-05 | DD-06 | ||
| SDD-05 | SDD-06 | DD-07 | |
| BFDD-05 | BFDD-06 | ||
| Application | 9-11m | 10-12m | 12-14m |
Unfold
Features
