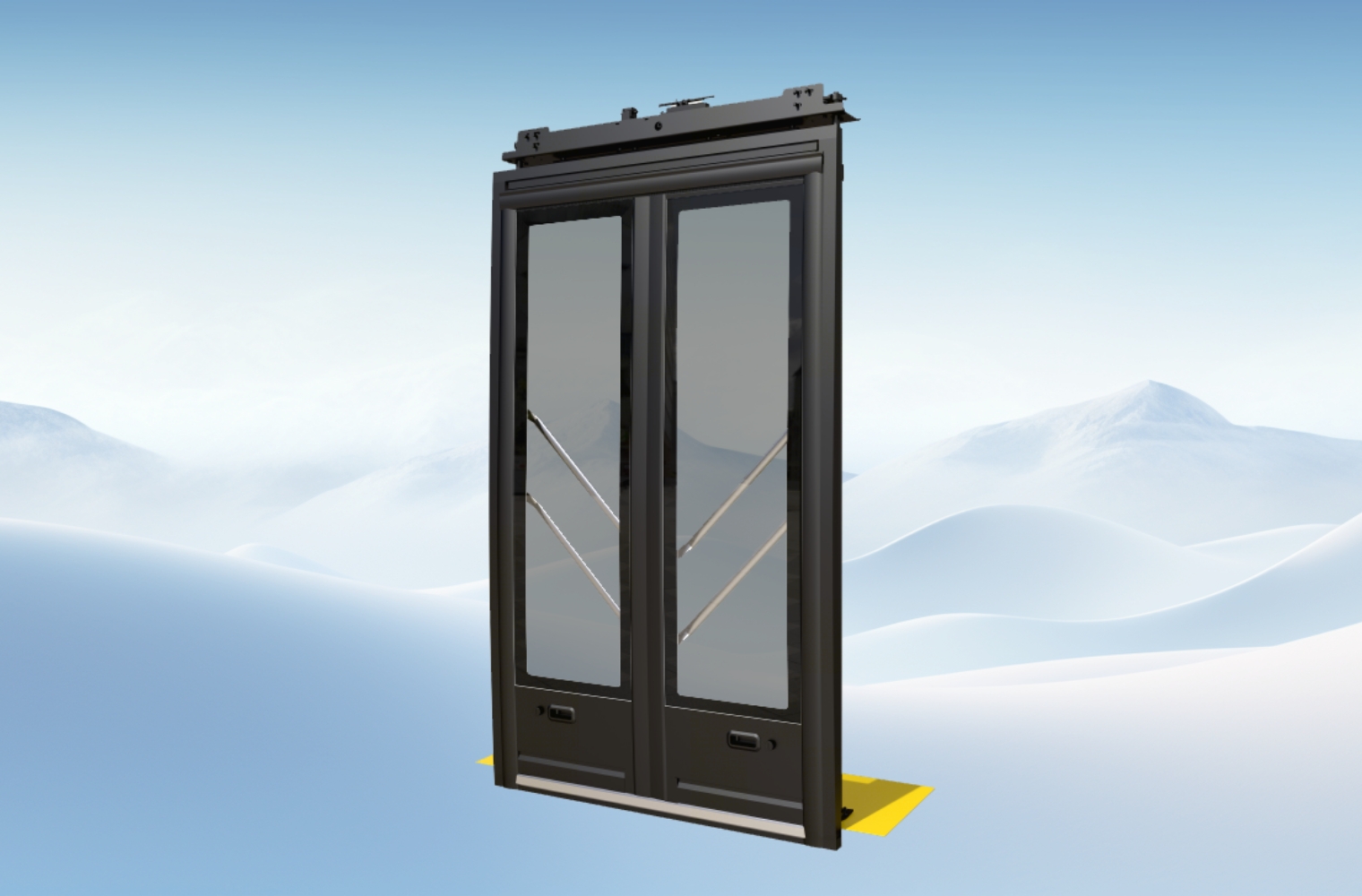

Pneumatic In-swing Door (second generation)

Applicable to passenger door systems of city buses

≤ 120N (mean value)

Anti-pinch force
≥ 1.2 million

Door open/close cycles
(2.5-4) seconds

Door open/close time
-40°C~80°C

Operating temperature

Get a quote WhatsApp

Technical Parameters

Type	Electronically controlled pneumatic in-swing door system
Working voltage	22V~30V(DC24V)
Working medium	Compressed air (filtered by strainer above 40μm)
Working pressure	0.6~0.8Mpa
Ambient temperature	-40°C~80°C
Relative humidity of operating environment	≤95%
Opening/closing time	2.5~4s (non-adjustable)
Door open/close cycles	≥ 1.2 million
Filter drainage method	Differential pressure type
Anti-pinch force	≤ 120N (mean)

Unfold

Features

Safer

The door panel is equipped with an airbag + delay dual anti-pinch configuration. Infrared anti-pinch can also be optionally installed to maximize passenger safety.

More Reliable

It meets the operational demand for 12 years (1.2 million door open/close cycles).

More Aesthetic

The door panel is consistent with the overall vehicle design, enhancing the vehicle's coordination and aesthetics.

Smarter

Remote monitoring can be optionally installed to enable online monitoring and online fault diagnosis, and to display door abnormalities and other status.

photos

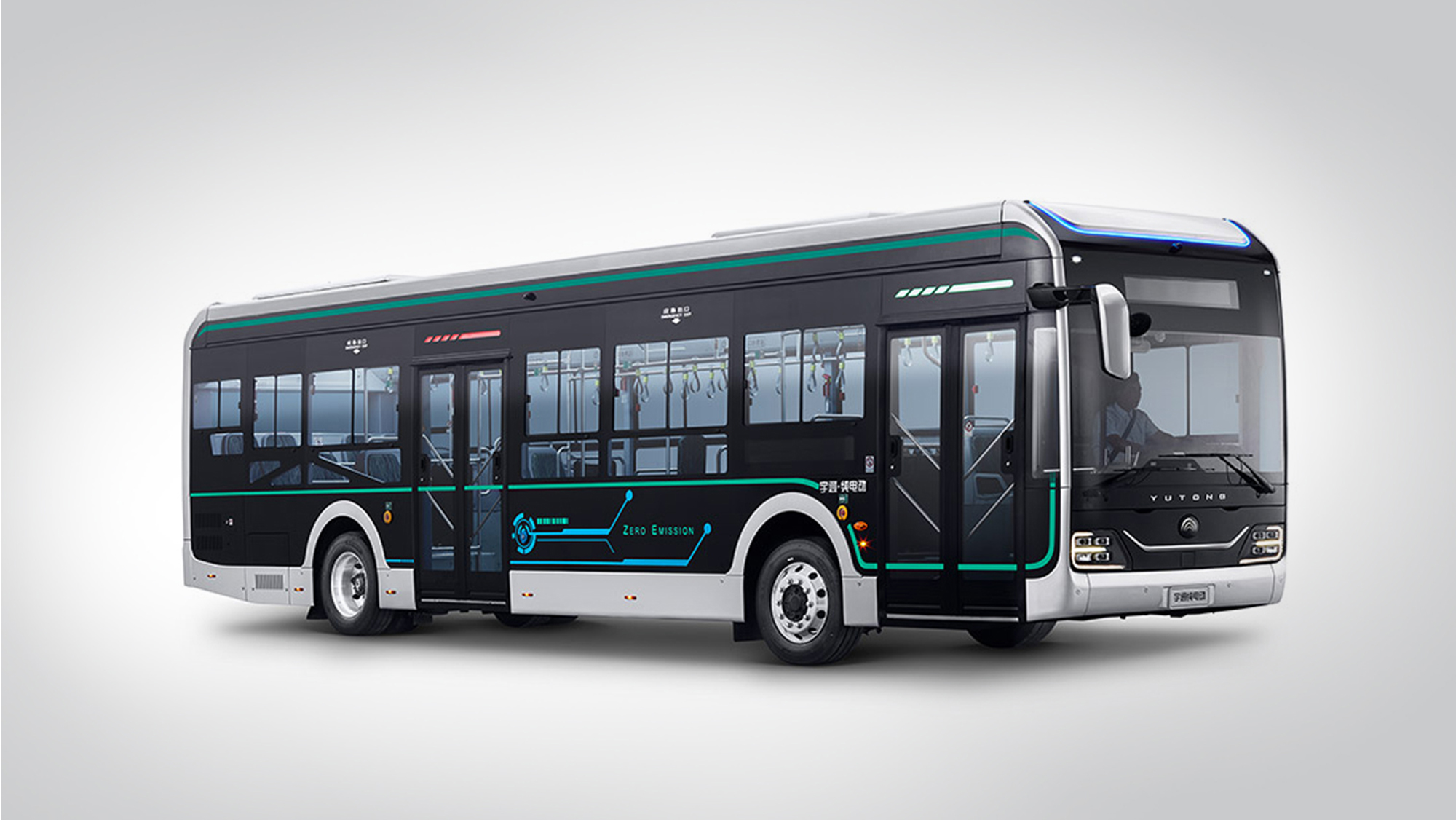

Customer Cases
