RussianSCQ Series CCS Combo2 EV Plug
SCQ series European standard DC charging gun, is to be used exclusively for charging electric vehicles.
-
DC1000V
Operation voltage
-
80A 200A 250A 300A
Rated current
-
IP44
Protection voltage
-
TUV CE Approved
Certification
Technical Parameters
| Mechanical performances | ||
| Insertion cycles | ≥10000 cycles | |
| Insertion/withdrawal force | ＜100N | |
| Electrical performance | ||
| Rated current |
DC+/DC-: 300A、250A、200A、80A; PP/CP: 2A Max |
|
| Rated voltage |
DC+/DC-: 1000V DC; PP/CP: 30V DC |
|
| Withstand voltage | DC+&DC-&PE 3000V AC | |
| Insulation resistance | ≥100MΩ(DC+&DC-&PE,DC 1000V) | |
| Temperature rise | <50K | |
| Temperature sensors | 2×PT1000 | |
| Environmental performance | ||
| Degree of protection | IP44(when plugged in),IP24(unplugged) | |
| Operation temperature | -30℃～+40℃ | |
| Salt spray | NSS 96H | |
| Altitude | 5000m above sea level | |
| Main material | ||
| Housing | PC | |
| Insulation parts | PA | |
| Sealing parts | Rubber | |
| Contacts | Copper alloy | |
| Flame resistance | UL94 V-0 | |
Unfold
Features

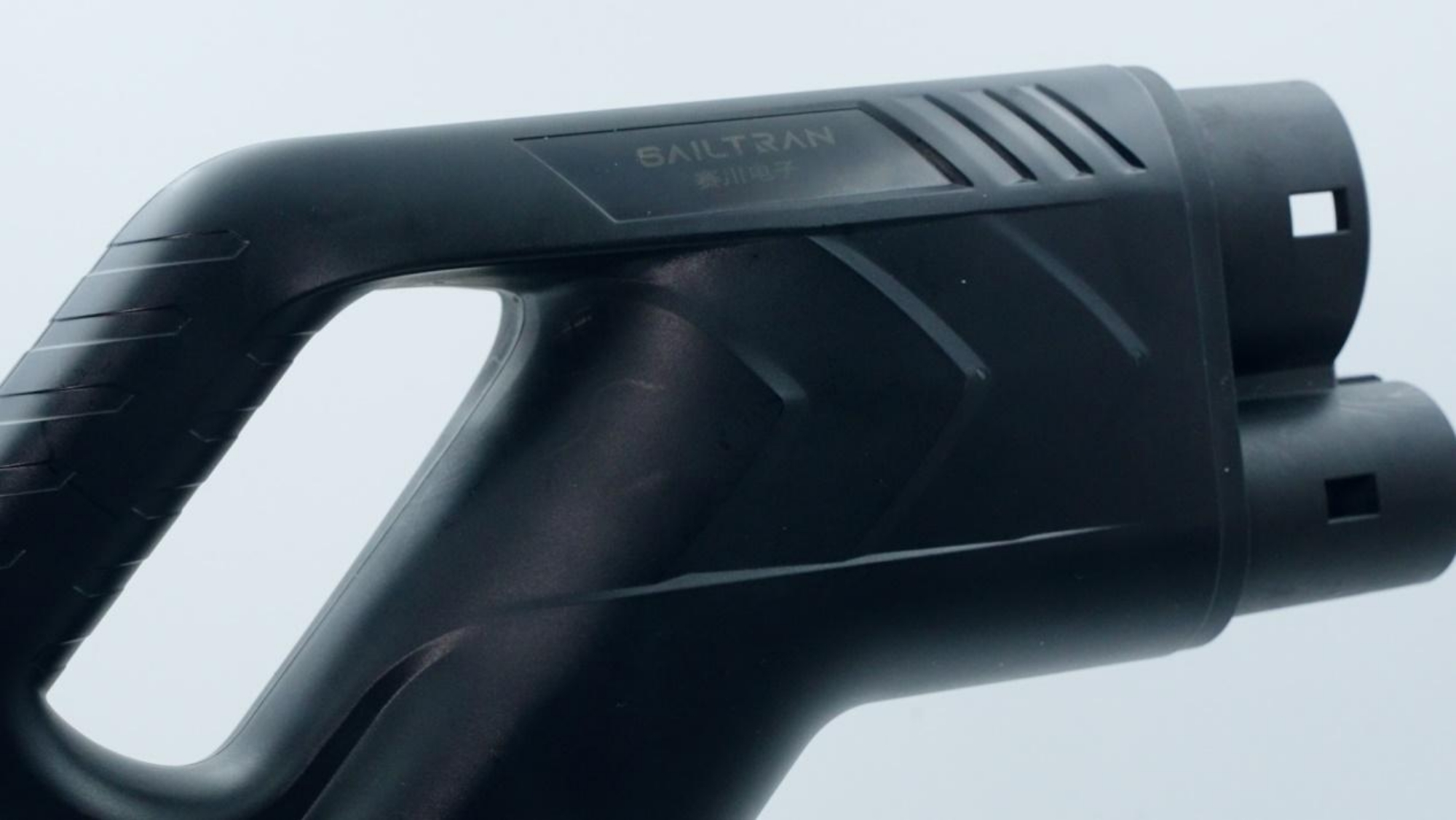

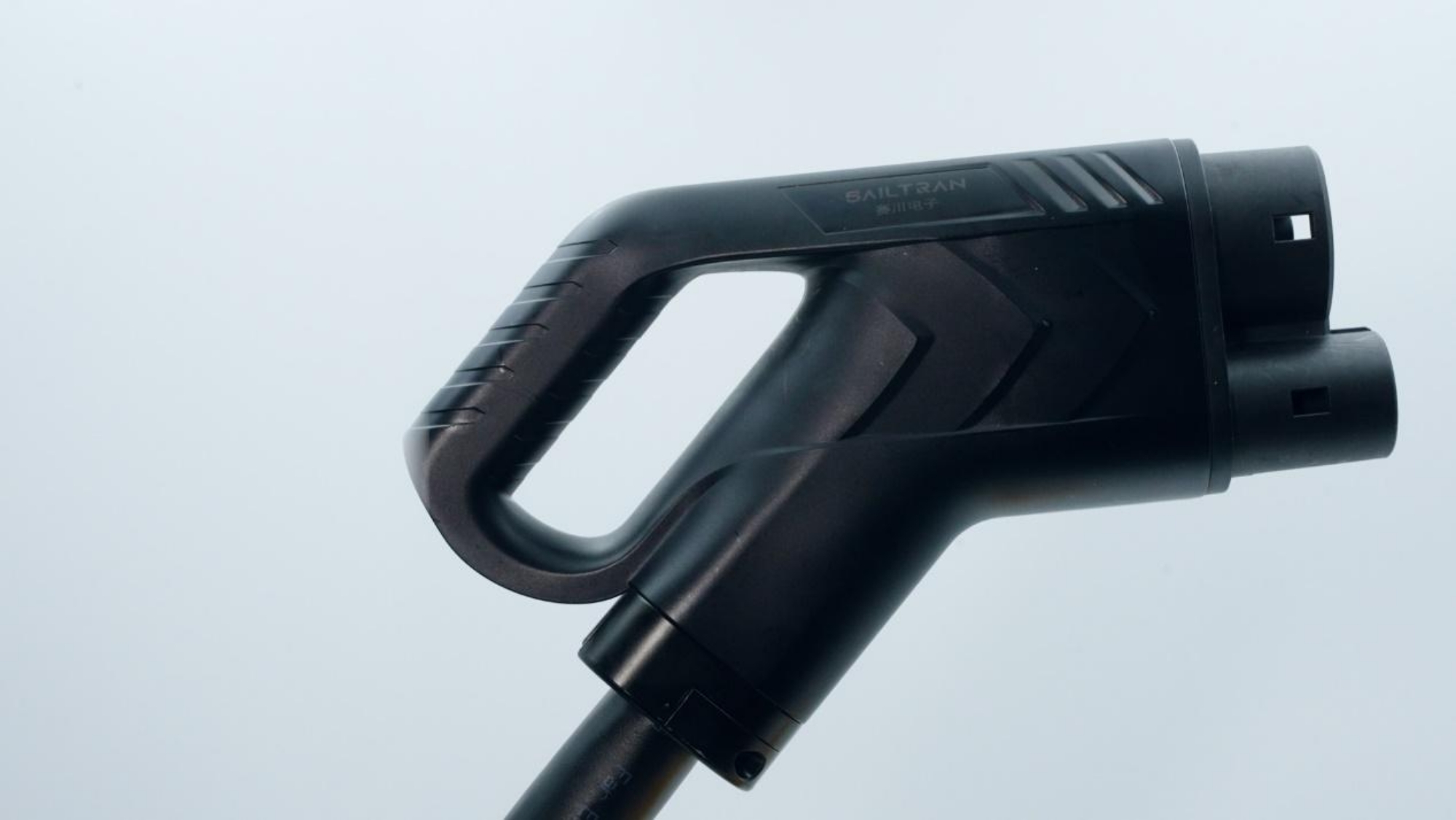

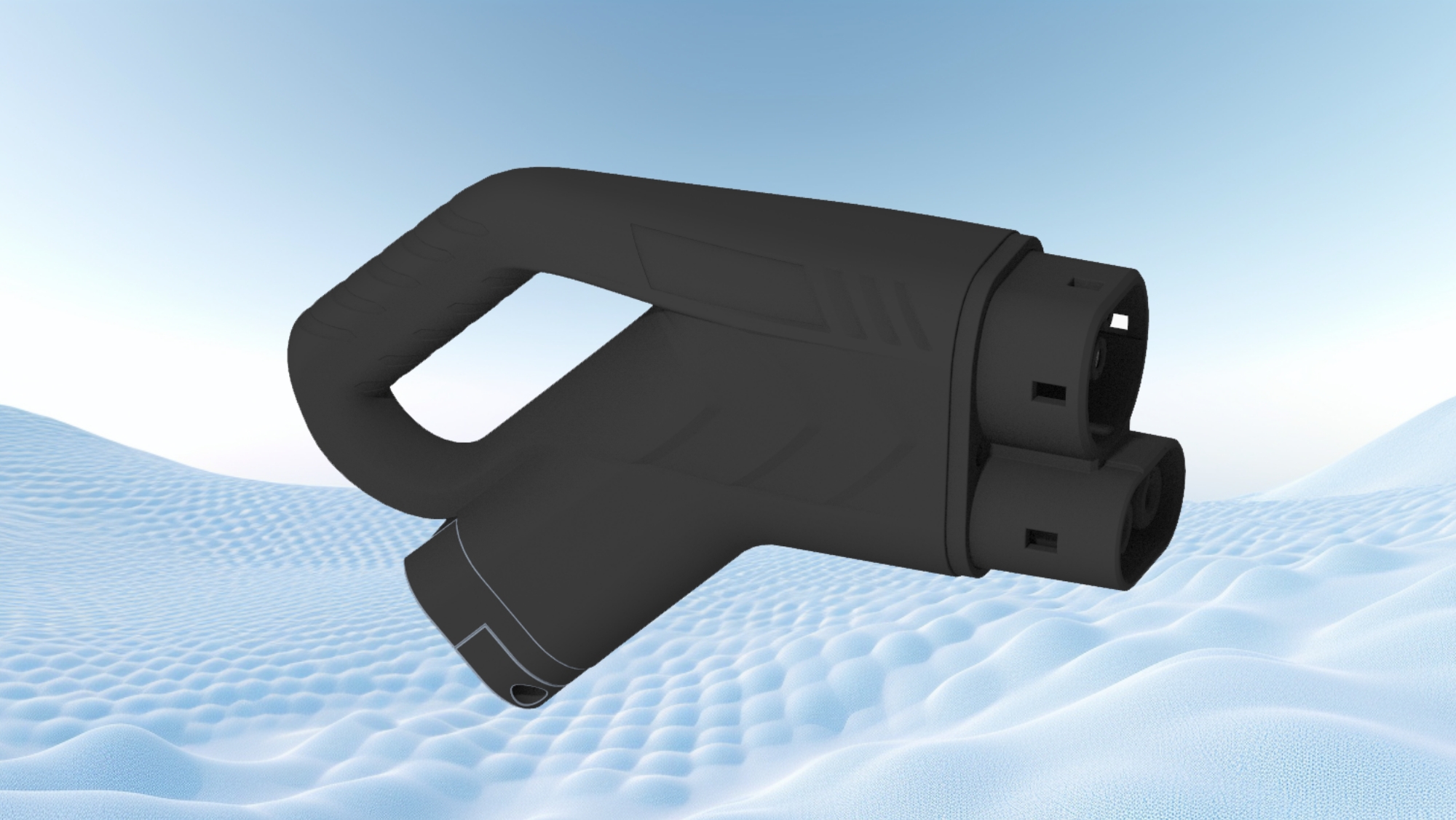

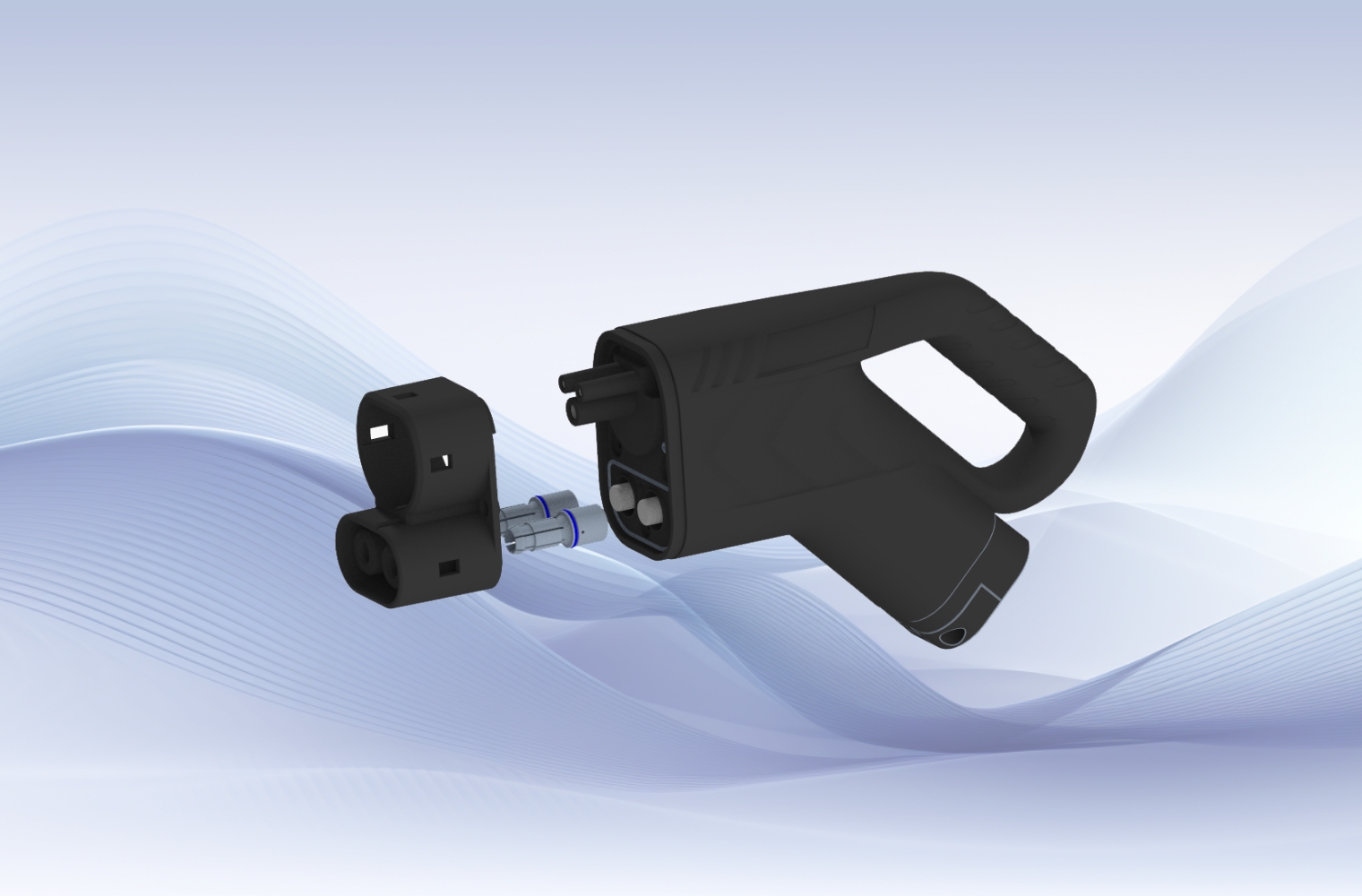

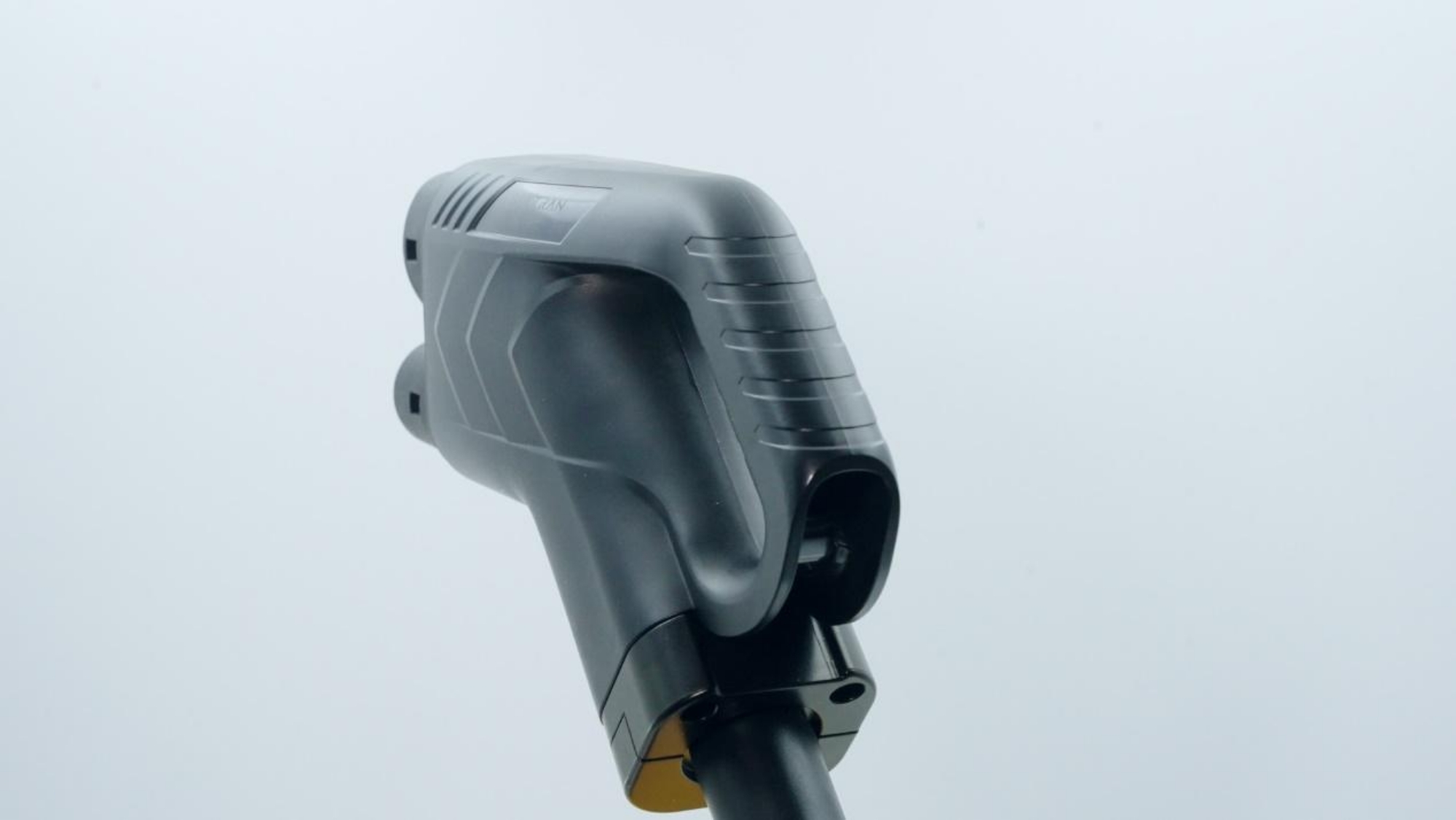

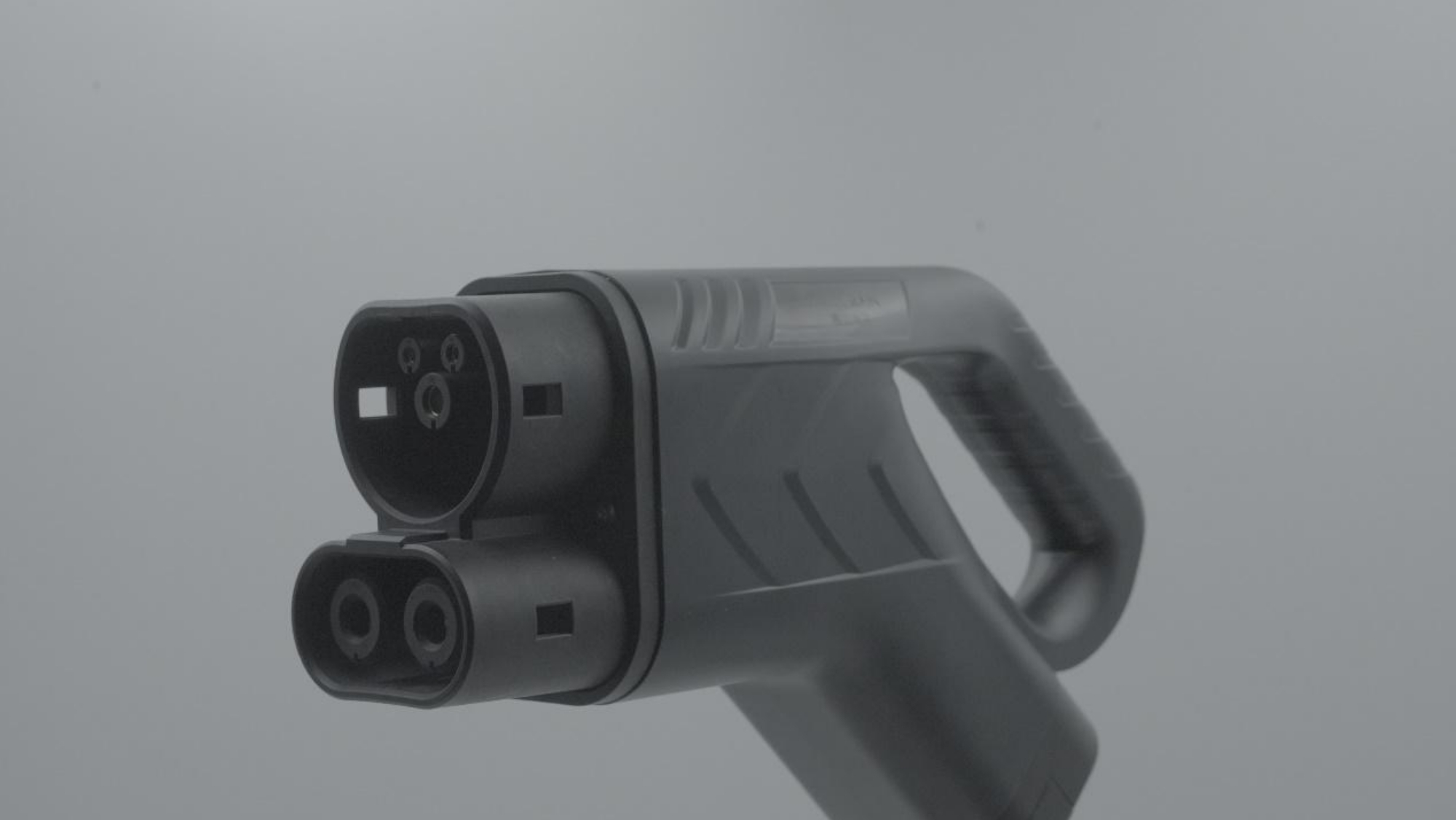

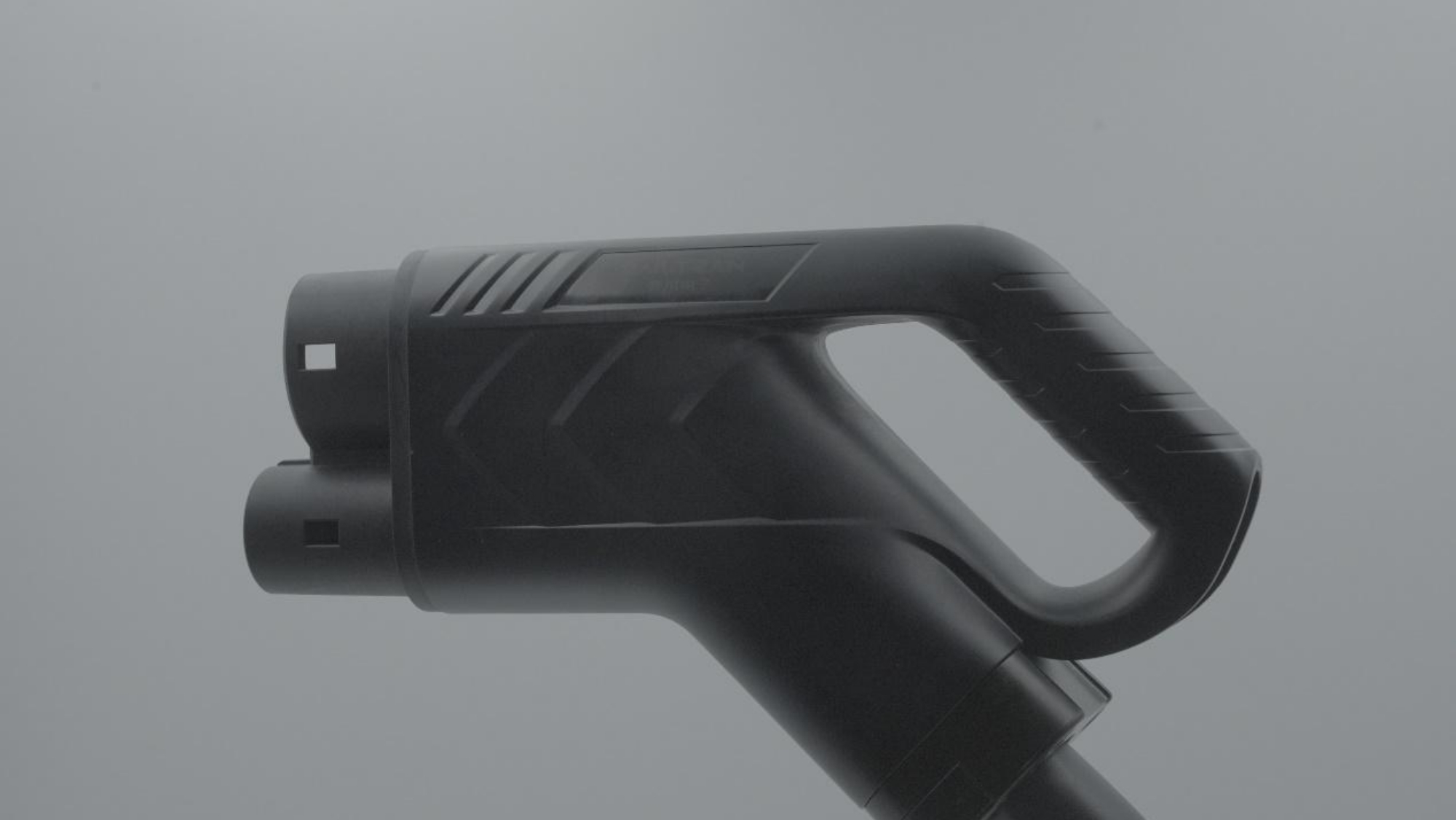

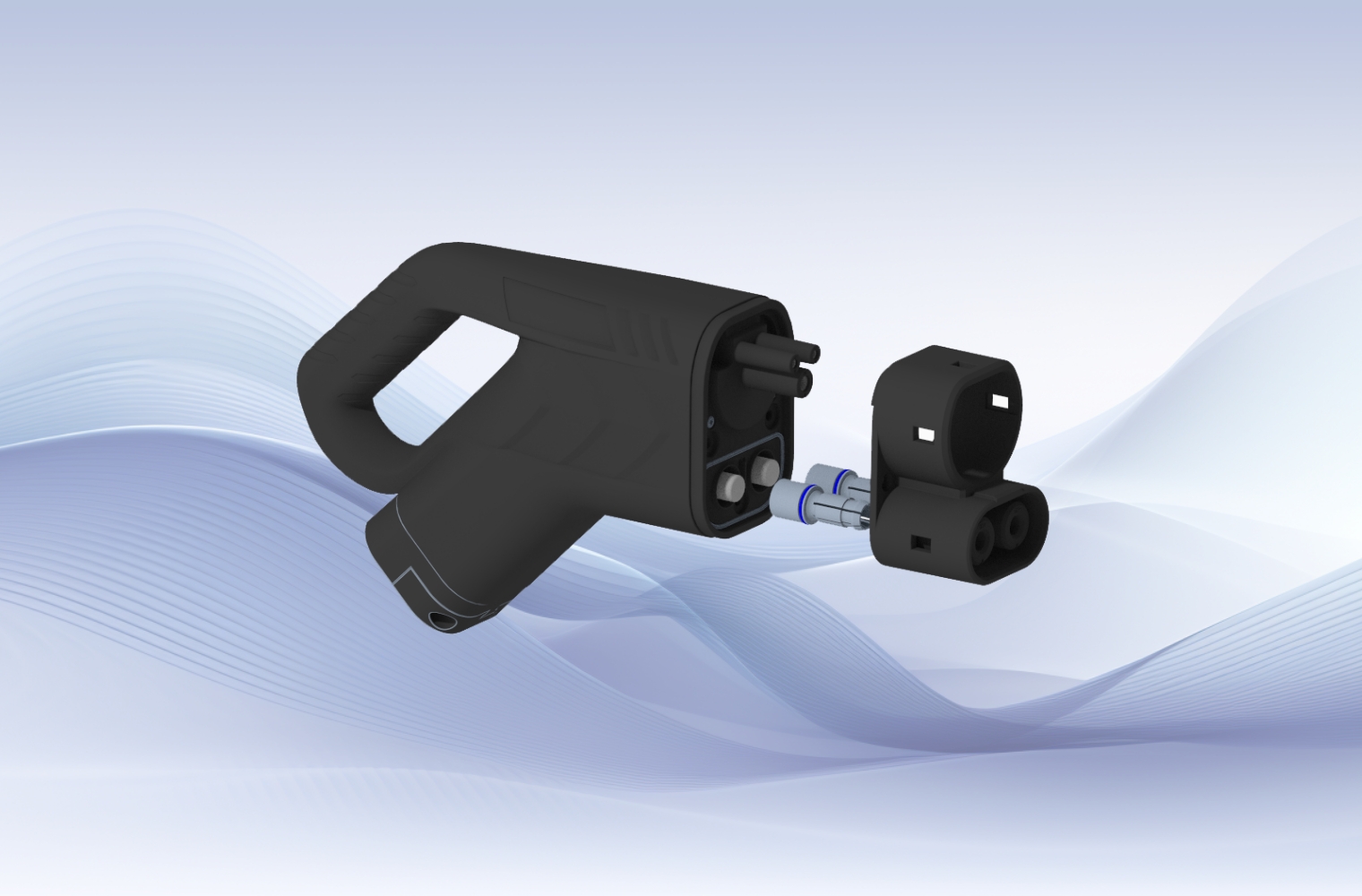

photos
