YT08C Suburb Version-ZHENGZHOU JINGYIDA AUTO PARTS CO.,LTD

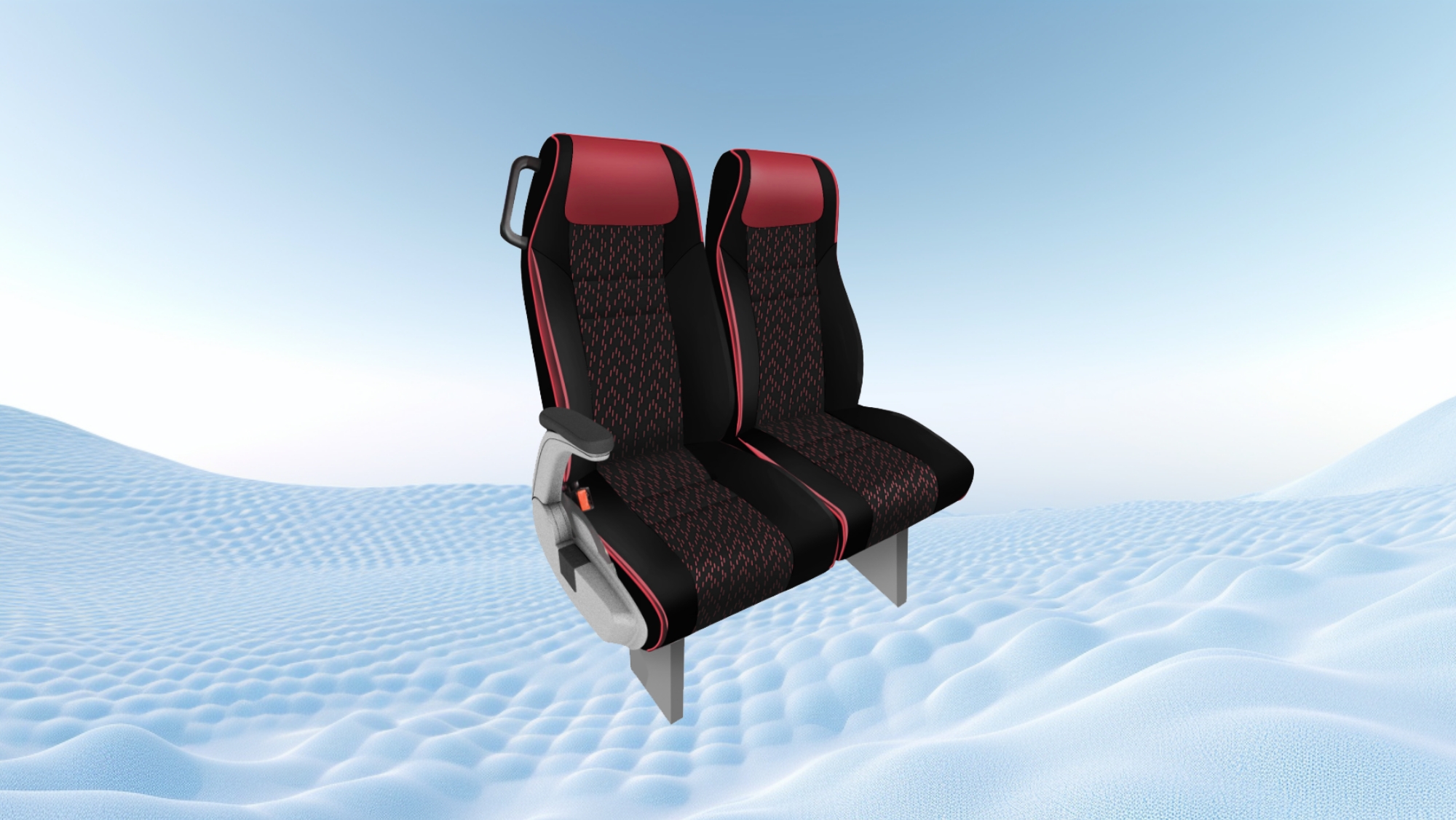

YT08C Suburb Version

The product is suitable for front-mounted/large and medium-sized coaches to meet different market demands such as passenger transport, tourism and groups.

980(+10,-10)mm

Seat width (mm)
465(-10,10)mm

Seat cushion depth
12(0,+3)mm

Backrest thickness (mm)
450(-5,5)mm

Seat cushion width

Get a quote WhatsApp

Technical Parameters

Product parameter information
Backrest height	750mm
Backrest width	435mm
Seat cushion depth	455mm
Seat cushion width	445mm
Backrest thickness	12mm(0,+3)mm
Initial backrest angle	107°
Seat cushion height	445mm
Backrest adjustment angle	15°
Lateral adjustment range	N/A
Product function configuration information
Backrest adjustment	Standard: adjustable Optional: N/A
Lateral adjustment	N/A
Backboard	Standard: Yes Optional: —— (not optional)
Seat pocket	Standard: Yes Optional: —— (not optional)
Tray table	N/A
Side handrail	Standard: Yes Optional: —— (not optional)
Middle handrail	Standard: N/A Optional: N/A
Inner handrail	Standard: N/A Optional: N/A
Back handle	Standard: Yes Optional: —— (not optional)
Pedal	Standard: N/A Optional: Yes
Cup holder	Standard: N/A Optional: N/A
USB charge interface	N/A
Audio-visual system	N/A
2-point retracting seat belt	Standard: Yes Optional: N/A
3-point retracting seat belt	Standard: N/A Optional: Yes

Unfold

Features

Safety

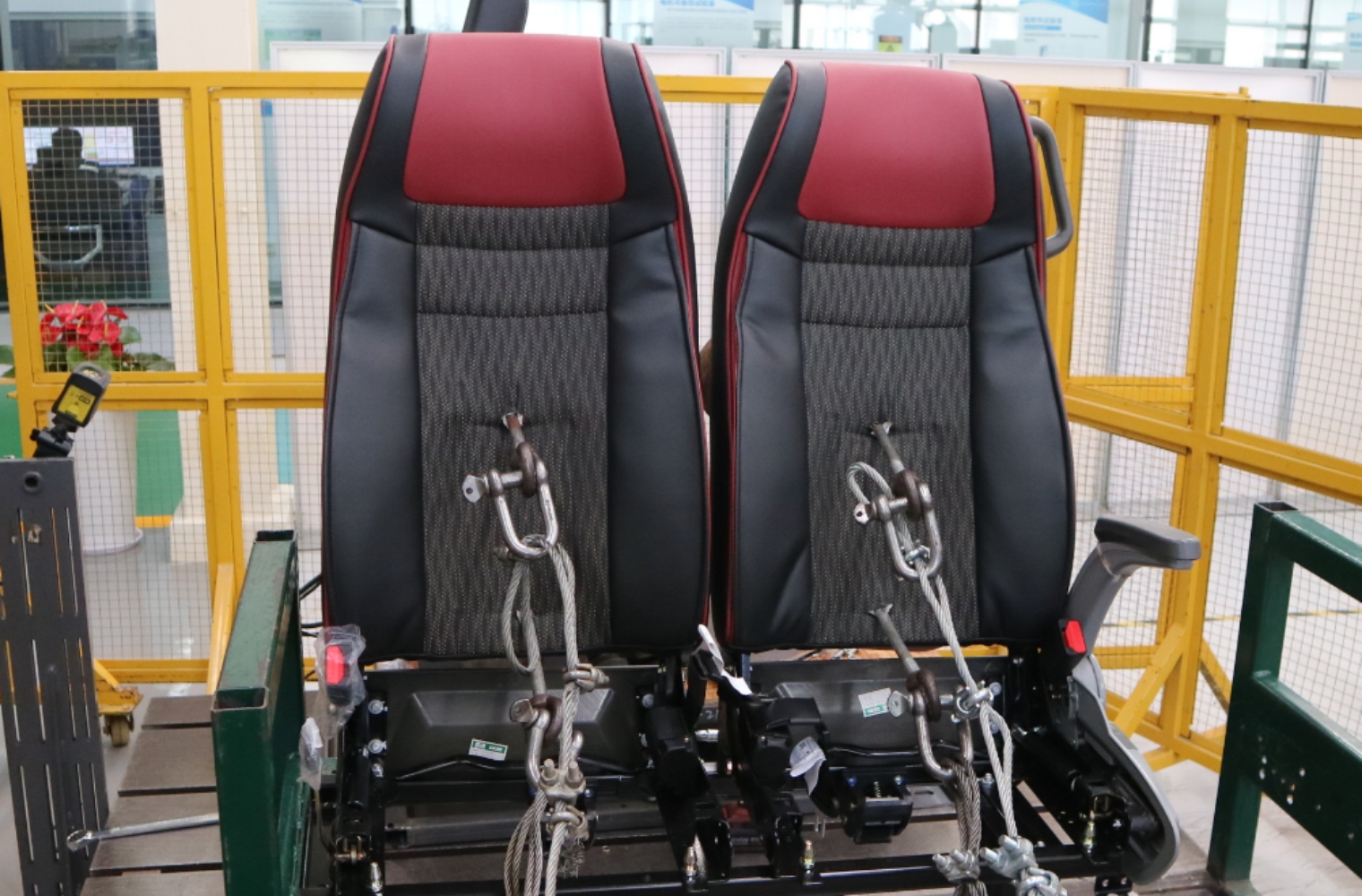

It has obtained the EU E-Mark certification and has passed the domestically conducted dynamic collision test, meeting the corresponding requirements.

Comfort

Ergonomically checked curve design, balanced body pressure distribution, and dual-density sponge design for cushion, head rest and other areas can bring you a comfortable experience regardless of long distance or short distance.

Reliability

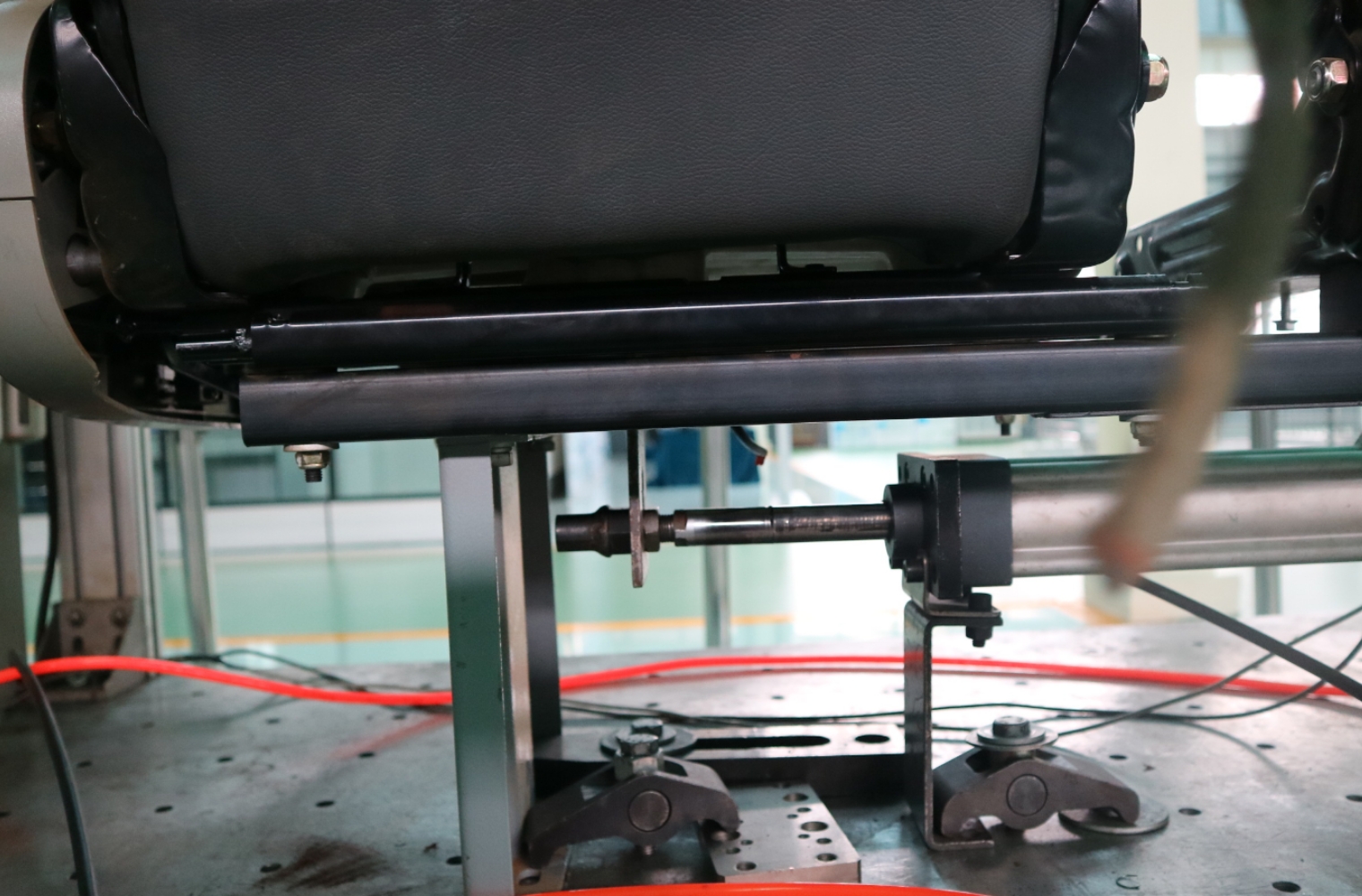

Each component shall be subject to rigorous reliability testing before mass production, ensuring that the product meets passenger requirements throughout its service life and reduces routine maintenance costs.
