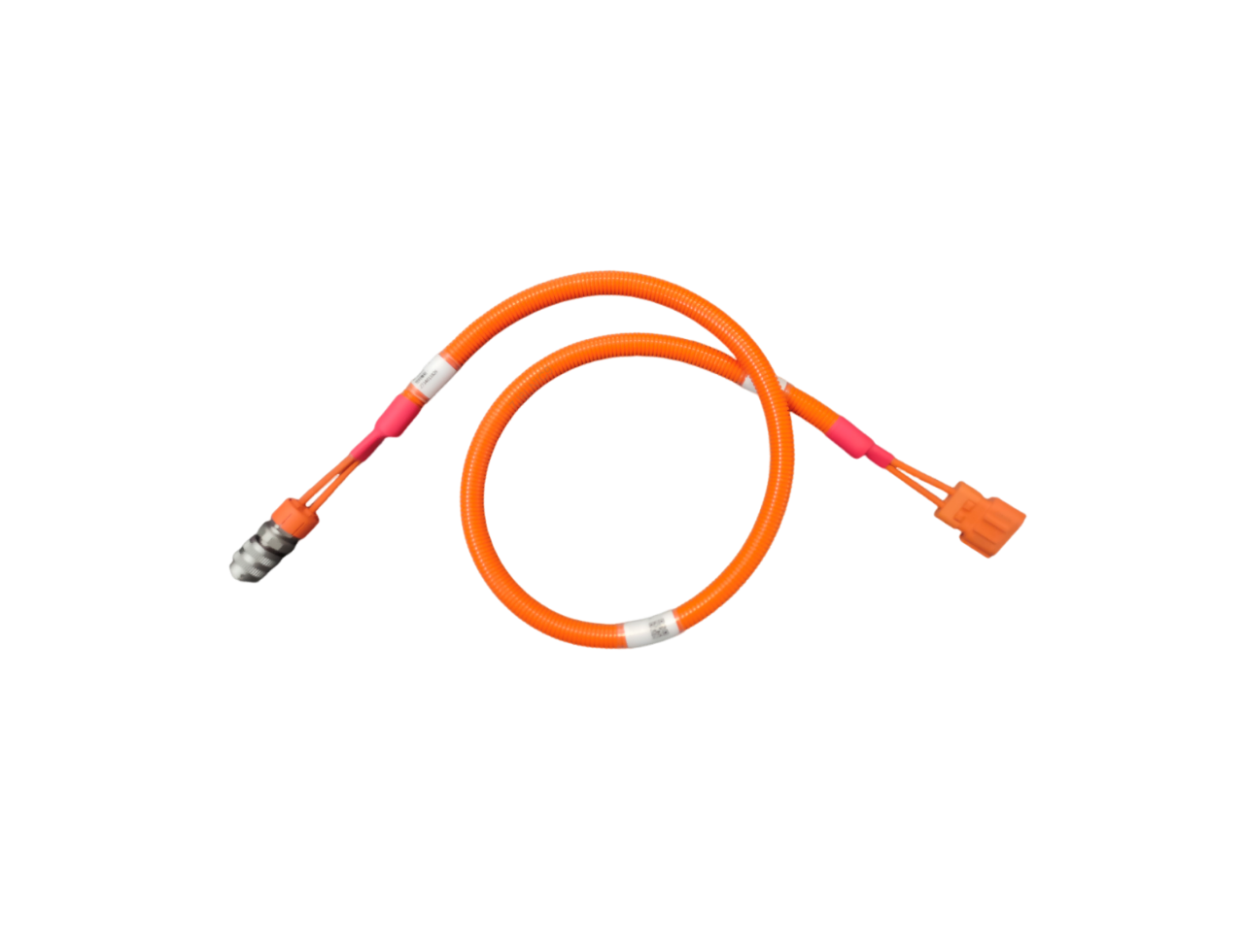

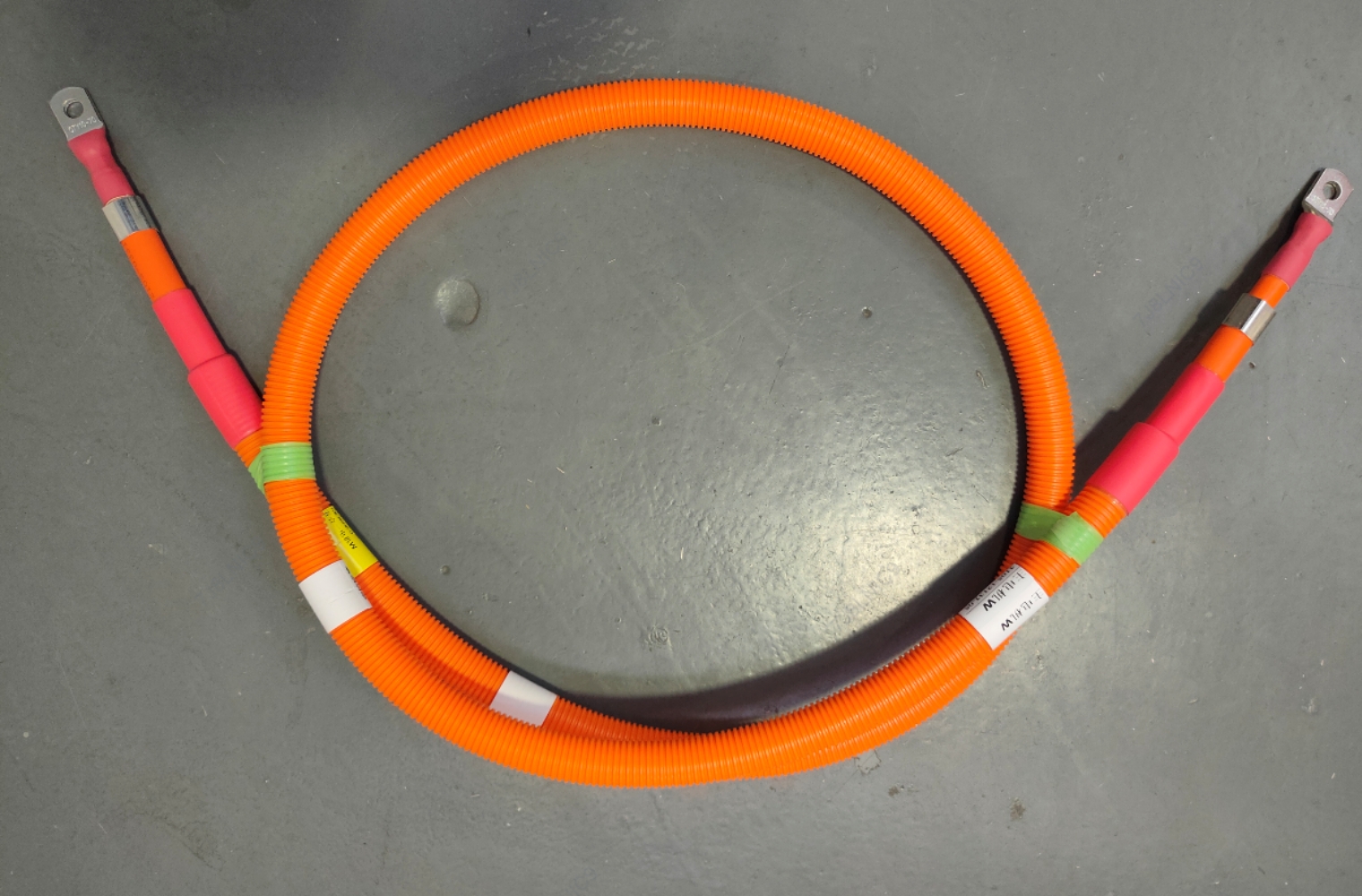

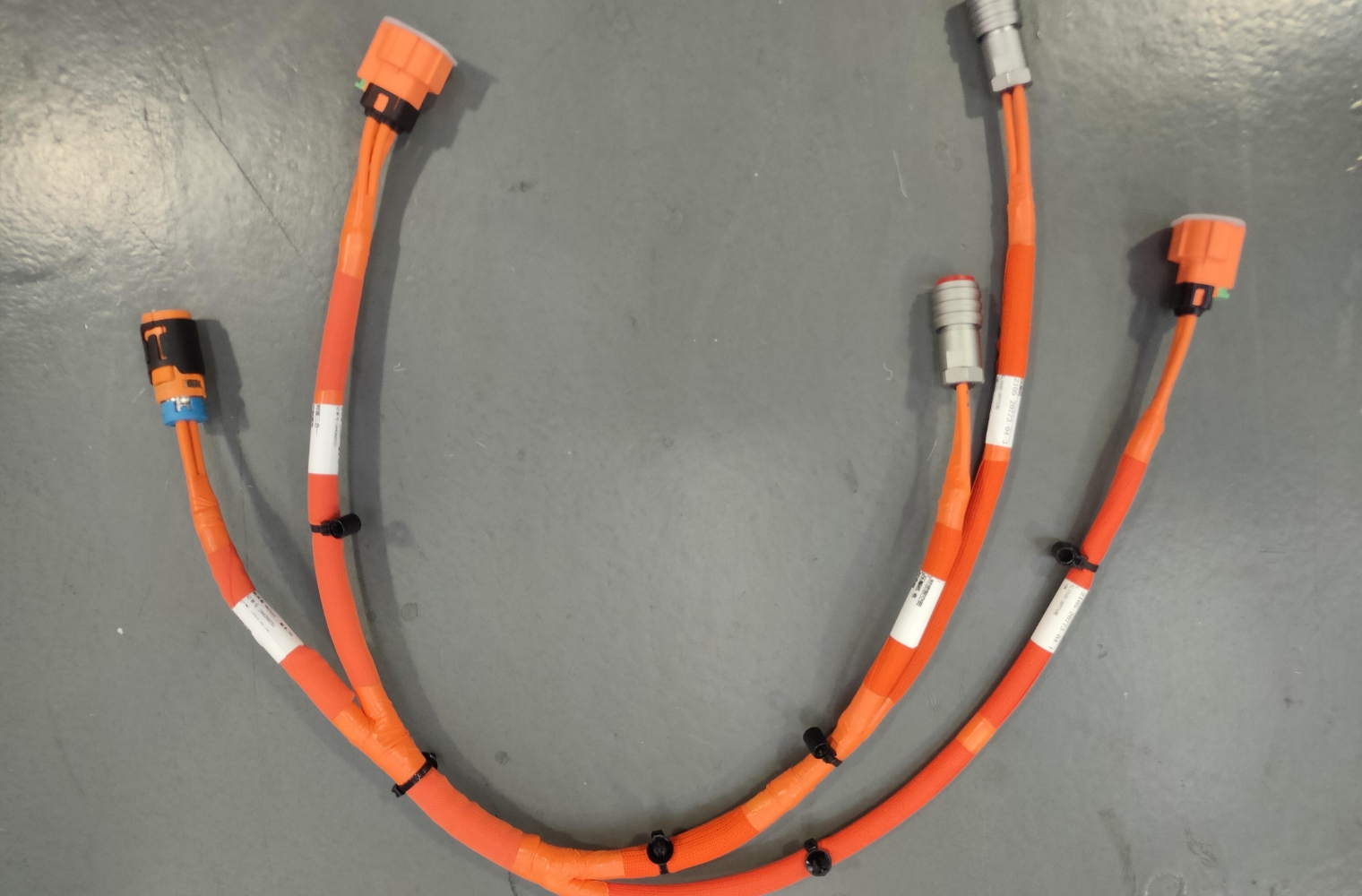

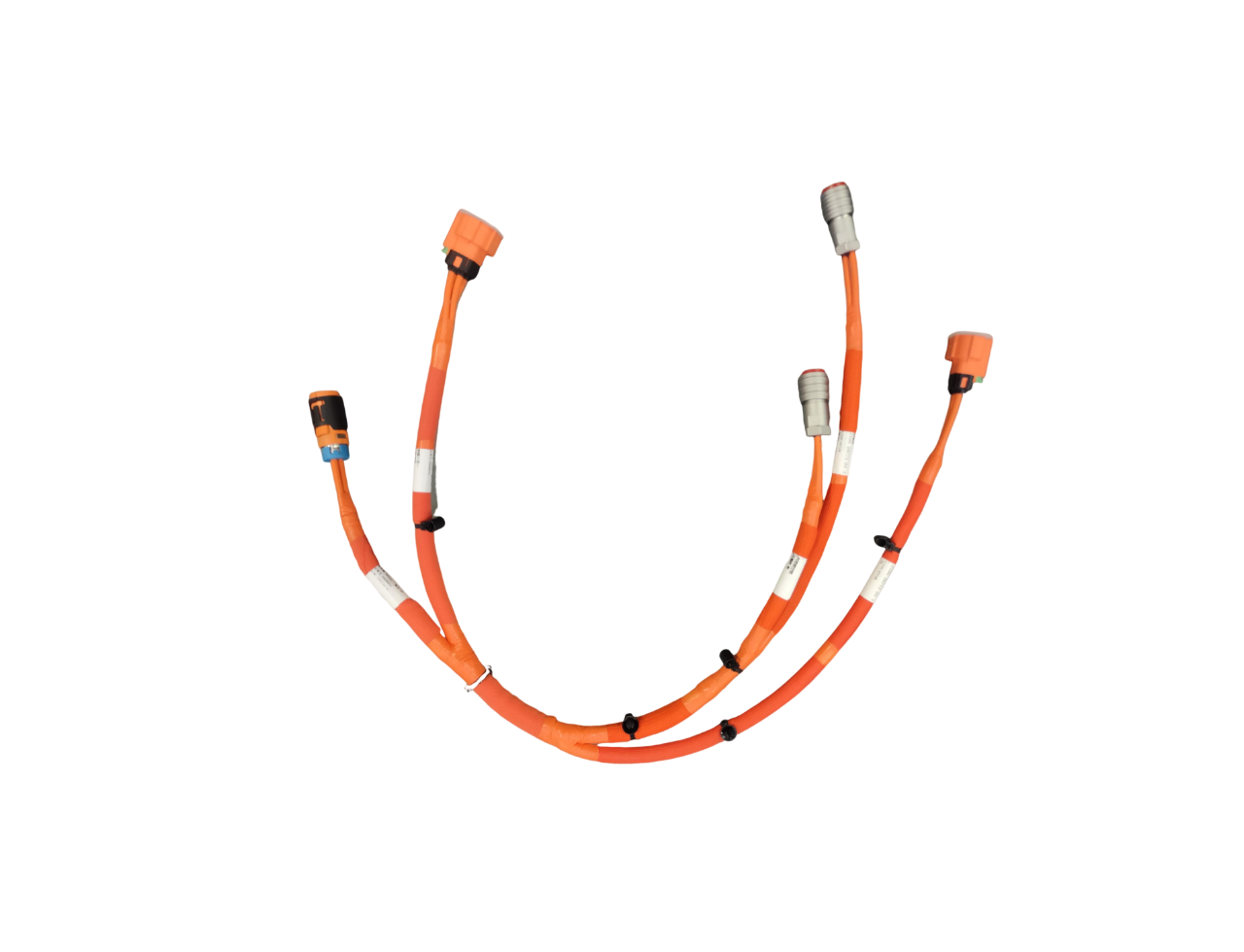

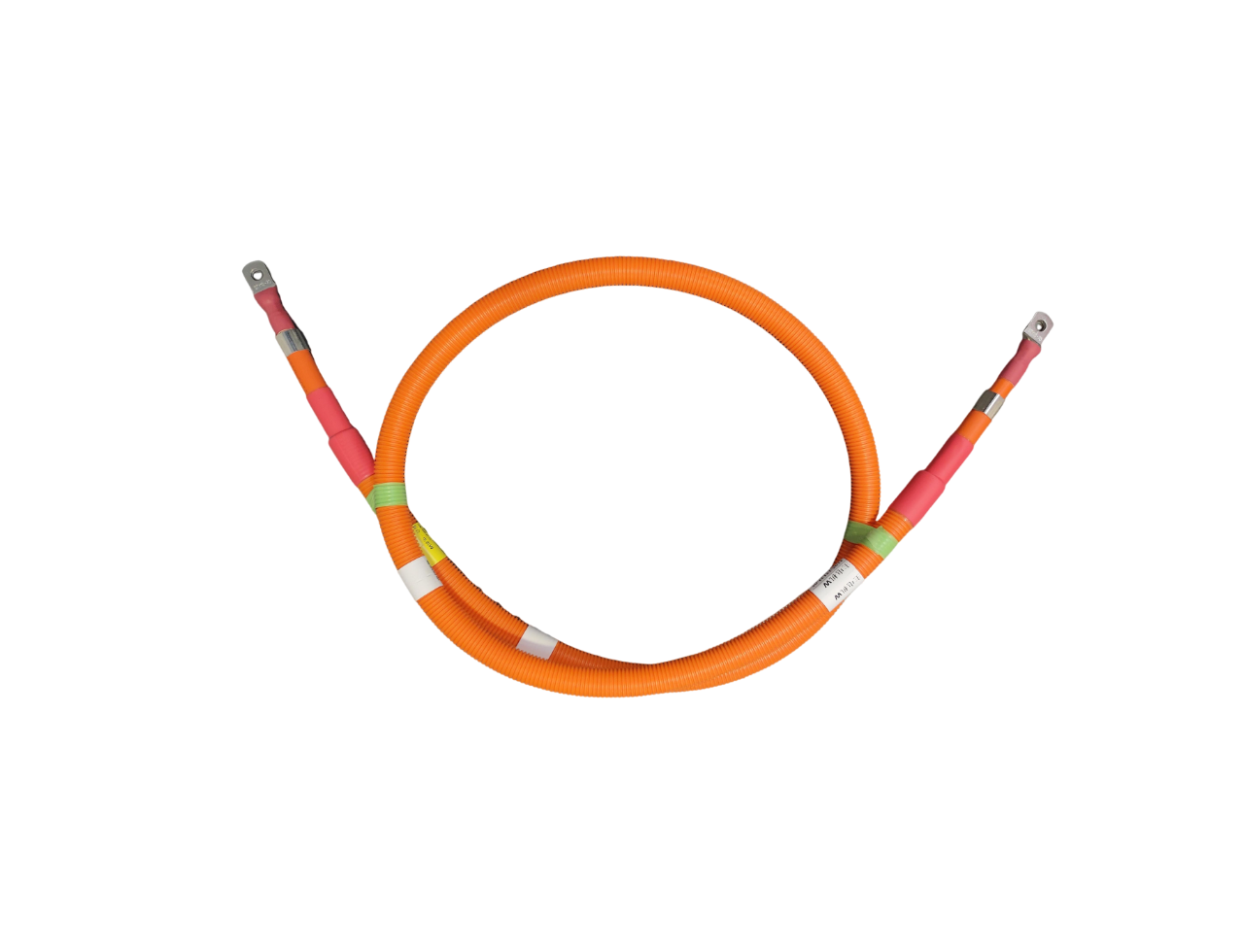

HV Wiring Harness Assembly

The product is suitable for the connection between HV electrical systems of NEVs such as buses, sanitation trucks, heavy trucks and light trucks.

DC 1500V/AC 1000V

Withstand voltage
20A-400A

Current-carrying
-40~125°C

Temperature resistance

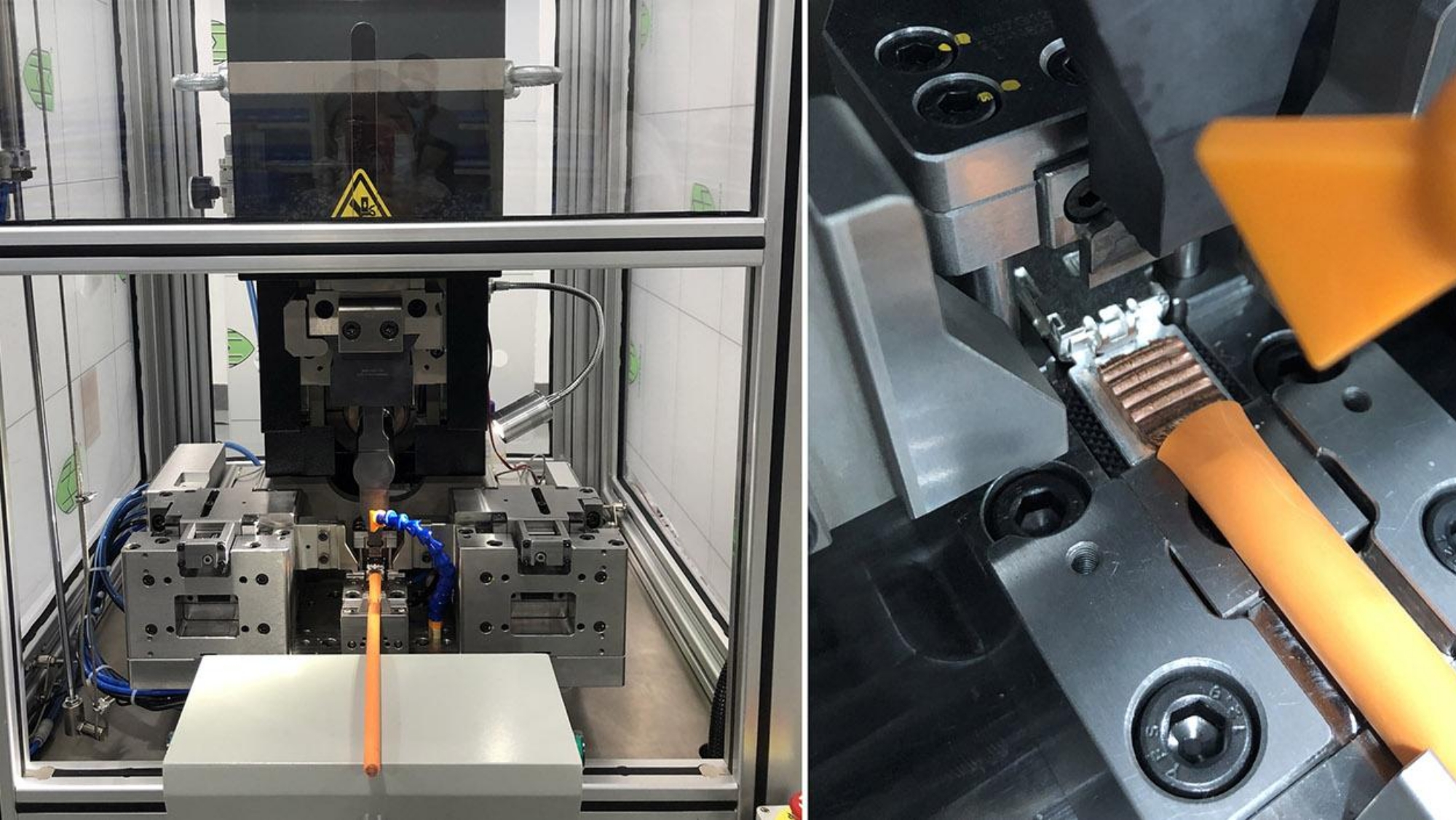

crimping; ultrasonic welding of 35-95 mm² copper wire

Terminal connection mode

Get a quote WhatsApp

Technical Parameters

Product model	HV wiring harness assembly
Withstand voltage	DC 1500V/AC 1000V
Temperature resistance	-40℃~+125℃
Current-carrying	20A-400A
Terminal connection mode	Crimping/ultrasonic welding (depending on the terminal)
Specification of HV conducting wire	GB 1037; LV216 standard orange HV conducting wire
Protection mode	Orange closed bellows, braided pipe, heat shrinkable pipe, adhesive tape, etc. (optional)
Specification of heat-shrinkable pipe	Double-wall heat-shrinkable pipe/single-wall heat-shrinkable pipe
Temperature rise	＜50K
Flame retardant grade of raw materials	GB 2408 V0

Unfold

Features

Reliable and guaranteed quality

The product is equipped on various Yutong NEV models and is able to operate for more than 10 years. Its overall stability, reliability and durability are good.

Customized design

It can be designed and produced at the request of customers and has good flexibility. The conducting wire has current-carrying capacity covering 20A-400A.
