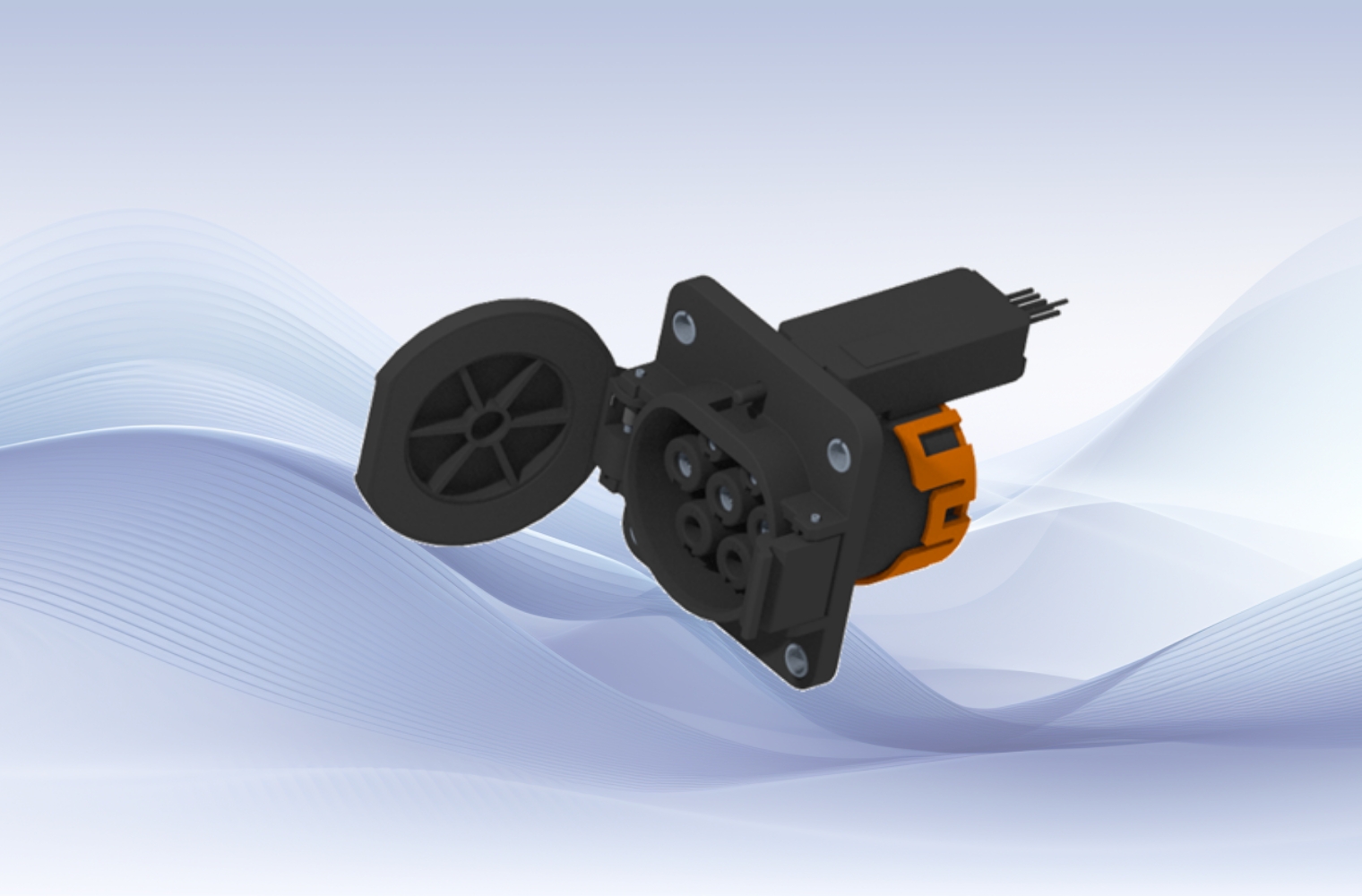

RussianChinese National Standard AC Charging Socket
The Chinese national standard AC charging socket is installed on the electric vehicle, and achieves the AC charging function via the AC charging gun. The product meets GB/T 20234.2-2015.
-
10,000 times
Mechanical life
-
-30~50°C
Operating temperature
-
AC 250V
Rated voltage
-
AC 16A/32A
Rated current
Technical Parameters
| Mechanical performance | ||
| Mechanical life | 10,000 times | |
| Mechanical vibration shock |
GB/T 2323.10-2008 Test Fc; Guidance; Vibration 10Hz～25Hz 1.2mm 25Hz～500Hz 30m/s² |
|
| Electrical performance | ||
| Rated current | AC interface: L1/N/PE: 16A/32A CC/CP: 2A | |
| Rated voltage | AC interface: L1/N/PE: 250V CC/CP: 30V | |
| Withstand voltage | L1/N/PE: 2500V AC/1min. | |
| Insulation resistance | 500V DC≥100MΩ (L1/N/PE) | |
| Temperature rise | <50K | |
| Environmental performance | ||
| Degree of protection | IP55 (with accessories) | |
| Operating temperature | -30℃~+50℃ | |
| Salt spray grade | 96H | |
| Main materials | ||
| Shell | PA | |
| Insulator | PA | |
| Sealings | Silicone rubber | |
| Contacts | Copper alloys | |
Unfold
