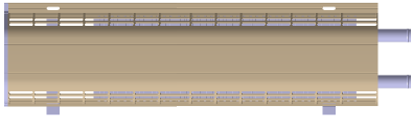

1. Cling Natural Radiator
Product Features
High heat dissipation efficiency: The heat dissipation per unit length of the product is 700w/m, which is twice that of the same specification products of other domestic manufacturers;
Beautiful appearance: Beautiful appearance and easy to install. It has no exposed nails and considerate design of wire troughs, which is suitable for different installation scenarios;
Quiet and comfortable: Natural water heating and heat dissipation, the customer experience is quiet and more comfortable;
Combination design: The product can be combined in different lengths to meet the needs of different models of customers;
Light weight: Using high-efficiency heat transfer tubes combined with simulation analysis reduces the product volume by 10% and the weight by 20%.
Specification
| Model | KLSZ |
| Heating | 700W/m |
| Weight | 2.6kg/m |
| Length | 0.5~5m |
| Dimension (mm) | L*184*99.5 |
| Application | High-end fuel bus |
Display

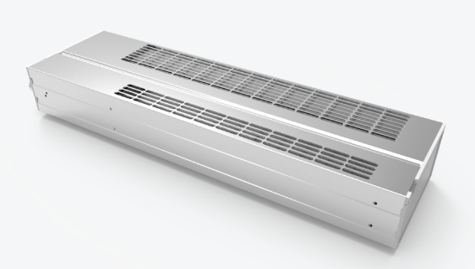

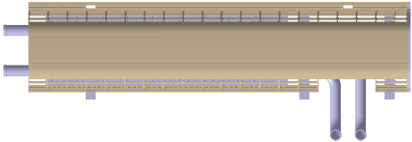

2. Cling Forced Radiator
Product Features
Intelligent and comfortable: The fan adopts multi-speed adjustment to achieve constant temperature control while meeting the rapid heating, reducing the start and stop of the radiator and improving the comfort of the ride;
Beautiful appearance: The product has beautiful appearance and is easy to install. It has no exposed nails and a variety of lengths, which are suitable for different installation scenarios;
Reliable and durable: It adopts long-life fans and aluminum profile shells, and the product service life is more than 8 years;
Mode air supply: After simulation analysis of multiple flow fields, a variety of radiator categories are designed to meet personalized needs according to the usage habits of different customers at home and abroad.
Specification
| Model | KLSQ-04A | KLSQ-02A | KLSQ-04B | KLSQ-02B | |
| Heating（kW） | 4 | 2 | 4 | 2 | |
| Air Flow (m³/h) | 400 | 200 | 400 | 200 | |
| Blower Power Consumption (W) | ≤40 | ≤20 | ≤40 | ≤20 | |
| Blower (lifespan) | Brush cross flow fan 4000h | Brushless axil flow fan 20000h | |||
| Speed Mode | Three shifts | PWM Continuously variable speed | |||
| Dimension (mm) | 645*99.5*190 | 400*99.5*190 | 800*164*99.5 | 500*164*99.5 | |
| Weight (kg） | 3.5 | 2.3 | 3.8 | 2.4 | |
| Protection Grade | IP54 as a whole part, EMC-3 | ||||
| Application | fuel bus/electric bus | overseas fuel bus | |||
Display

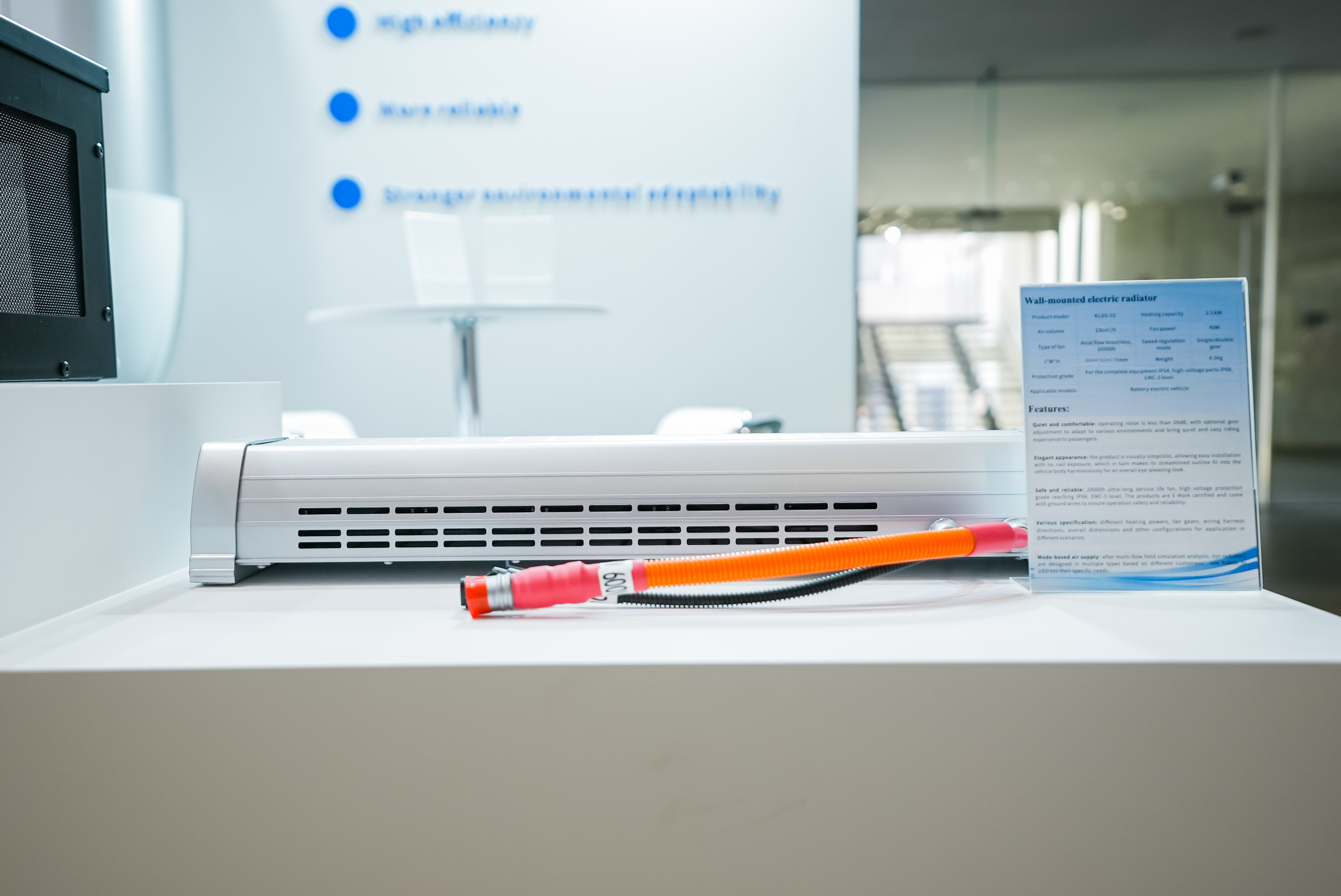

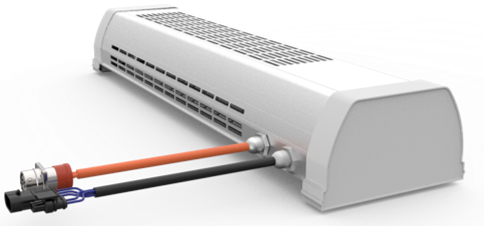

3. Cling electric heating radiator
Product Features
Quiet and comfortable: The noise is less than 59 decibels, and the gear adjustment is optional to adapt to various environments, bringing passengers a quiet and comfortable riding experience;
Beautiful shape: The product has beautiful and generous shape, easy installation, no exposed nails, streamlined design integrated into the vehicle environment, and a beautiful trip starts with a pleasing look;
Safe and reliable: It adopts a 20000h ultra-long life fan, high-voltage protection IP68, EMC-3 level, and all products are equipped with grounding wires to ensure product safety and reliability, and have passed the EU E-Mark certification;
Diverse configurations: It has a variety of heating power, fan gears, wiring harness directions, external dimensions and other configurations, which can meet various usage scenarios and save customers worry and effort;
Mode air supply: After simulation analysis of multiple flow fields, a variety of radiator categories are designed to meet personalized needs according to the usage habits of different customers at home and abroad.
Diverse configurations: It has a variety of heating power, fan gears, wiring harness directions, external dimensions and other configurations, which can meet various usage scenarios and save customers worry and effort;
Mode air supply: After simulation analysis of multiple flow fields, a variety of radiator categories are designed to meet personalized needs according to the usage habits of different customers at home and abroad.
Specification
| Model | KLDS-01 | KLDS-02 | KLDS-03 | KLDS-07 |
| Heating（kW） | 1.5 | 2.5 | 3 | 7 |
| Air Flow (m³/h) | 170 | 230 | 325 | 750 |
| Blower Power Consumption (W) | 20 | 36 | 49 | 85 |
| Blower (lifespan) | Brushless axil flow fan 20000h | |||
| Speed Mode | One shift | Two shifts | ||
| Dimension (mm) | 653*165*95 | 666*178*103 | 666*178*103 | 1818*178*103 |
| Weight (kg） | 4.3 | 6.2 | 6.2 | 13.6 |
| Protection Grade | IP54 as a whole part( IP68 for high-voltage components ), EMC-3 | |||
| Application | 6-12M | |||
Display
If you have any questions please don't hesitate to contact us.
E-mail: marketing@molead.com
Phone: +86 18736032501
