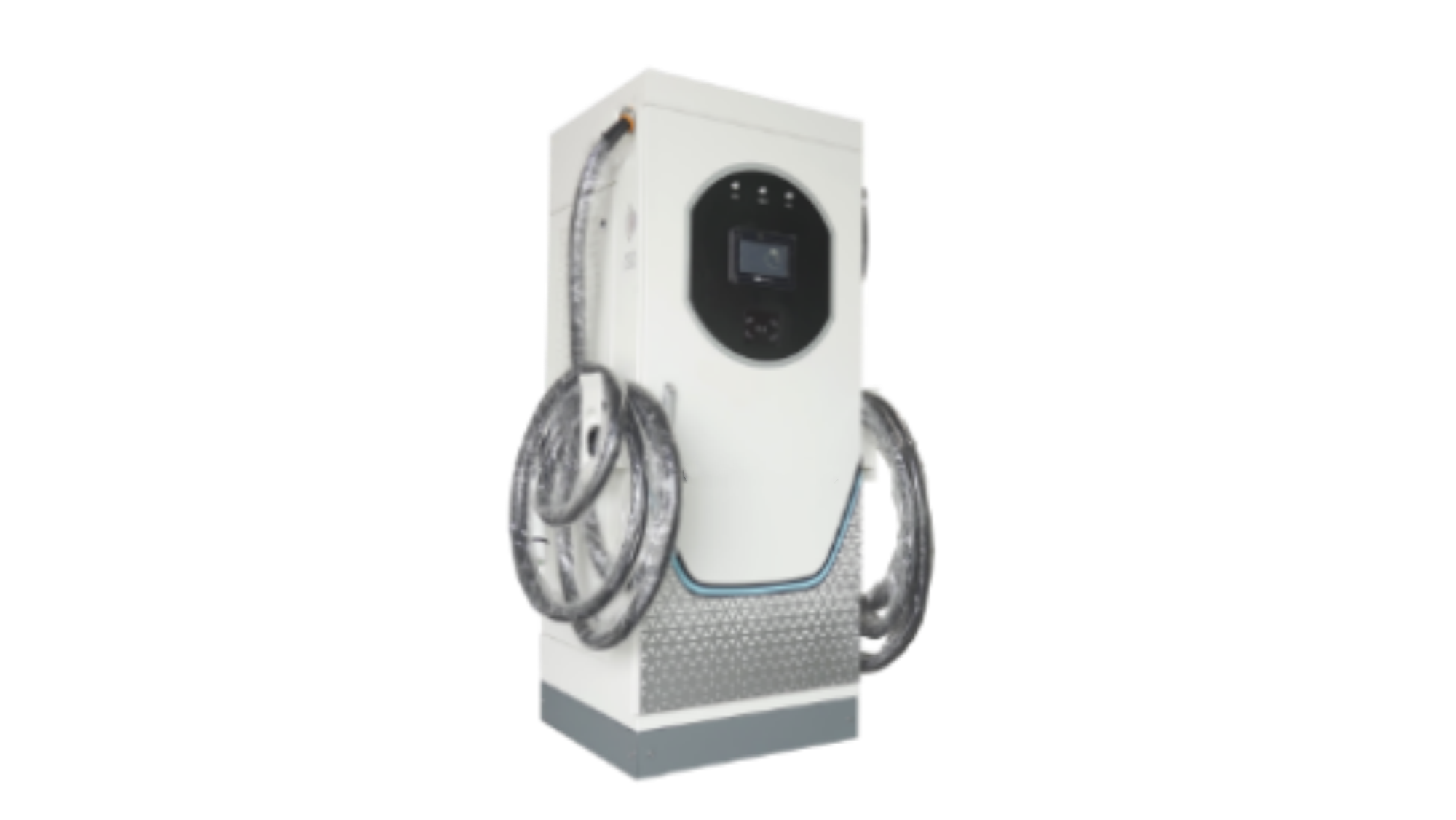

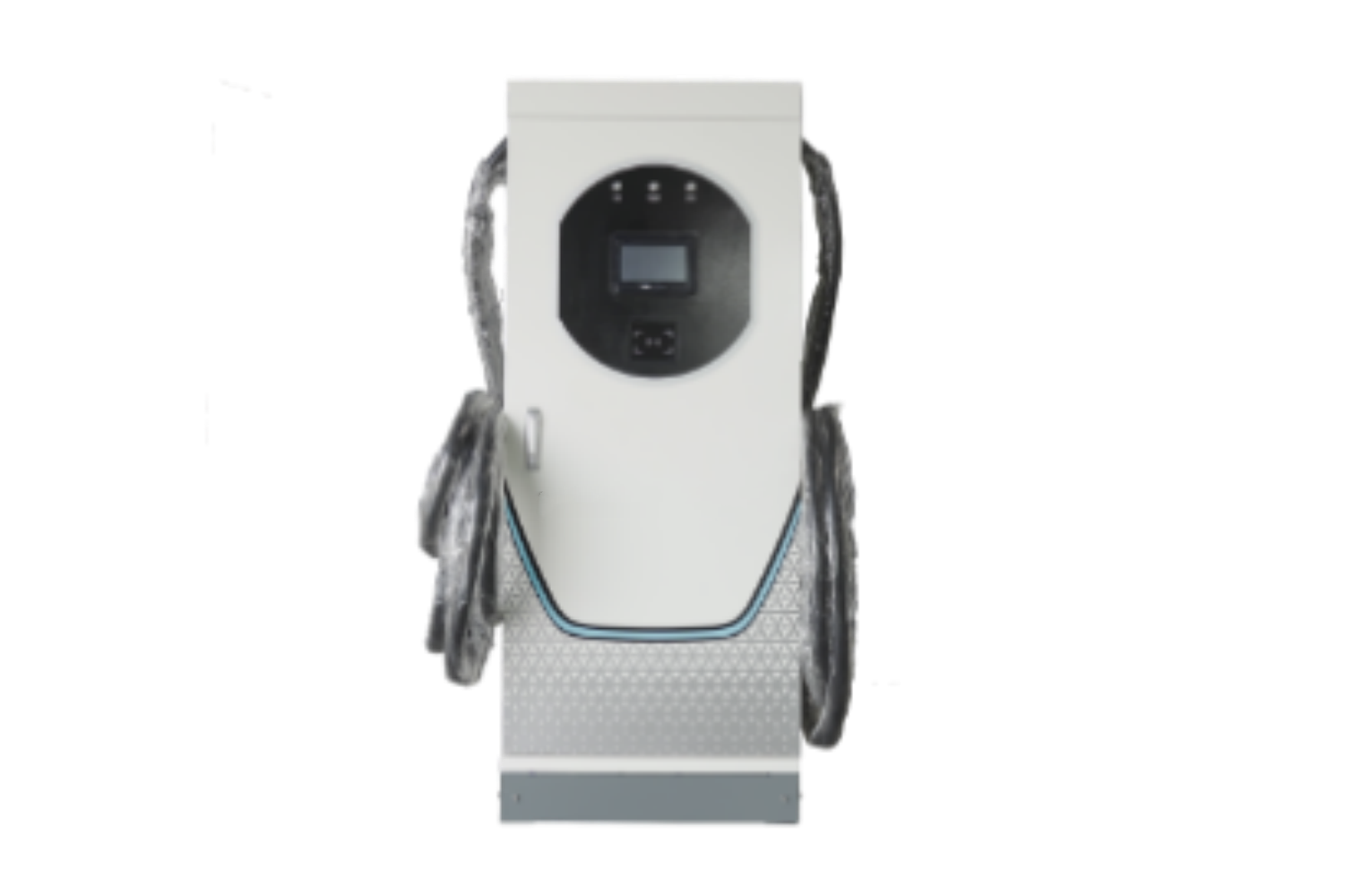

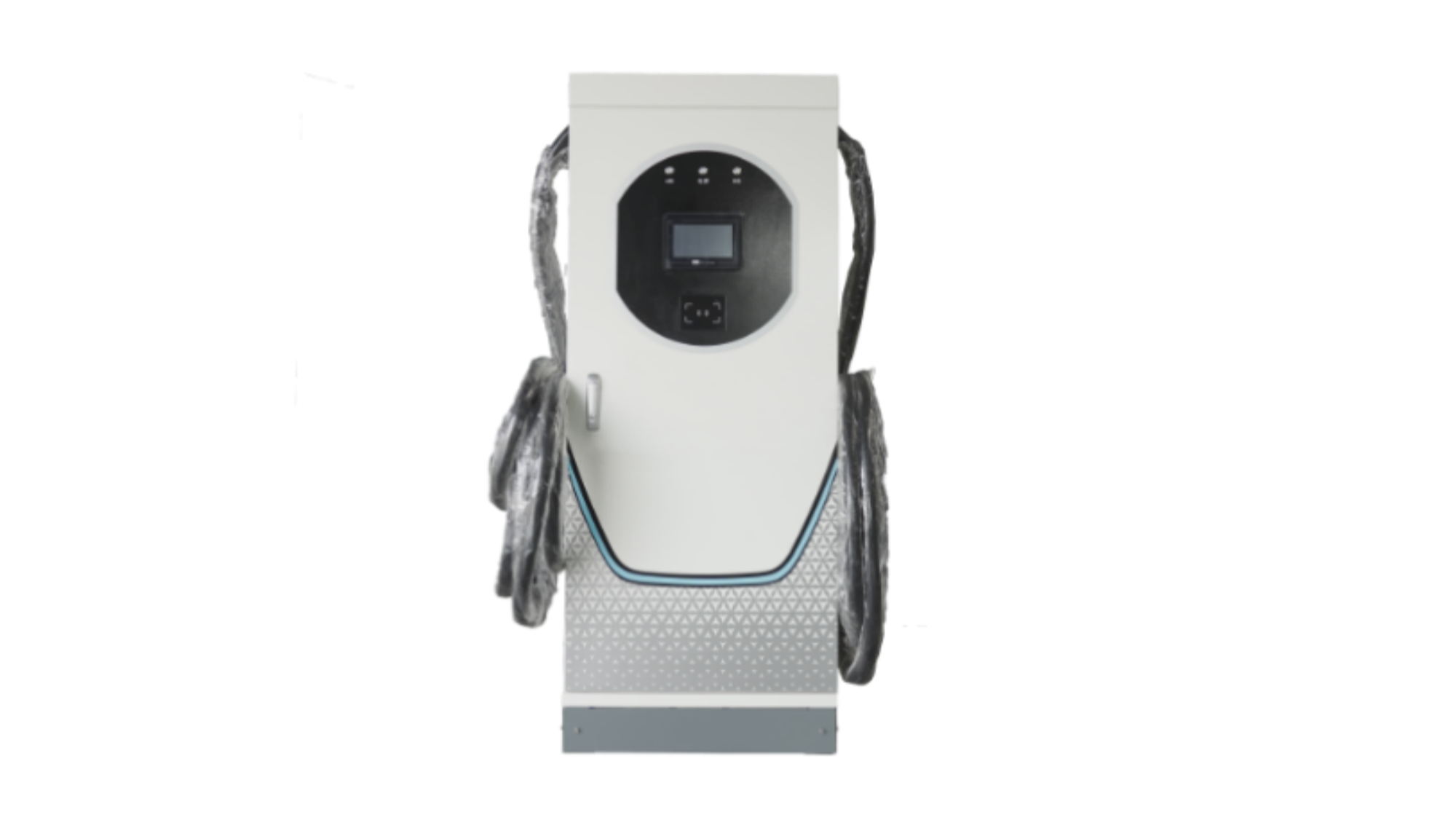

80/120/160kW Integrated DC Charger

The product is suitable for battery electric passenger vehicles, commercial vehicles and other models.

380 V/480 V+15%

Input Voltage (V)
50Hz+10%

AC Grid Frequency (Hz)
80kW, 120kW, 160Kw

Maximum Output Power (kW)
200-750 V

Output Voltage (V)

Get a quote WhatsApp

Technical Parameters

Categories	Item Data	SZ-80G3	SZ-120G3	SZ-160G3
Input	Voltage	380V±15%	380V±15%	380V±15%
	Frequency	50 Hz±10%	50 Hz±10%	50 Hz±10%
	Type	3-phase 5-wire	3-phase 5-wire	3-phase 5-wire
Output	Power	80kW	120kW	160kW
	Voltage	200～750V	200～750V	200～750V
	Current	3～267A	3～400A	3～500A
Safety	Cloud platform: Fault early warning and advanced disposal; Vehicle pile data intercommunication and two-way safety verification; Analysis of charging history data and big data protection.
	Charging station: Professional overall solutions are provided to reduce construction risks and improve construction speed.
	Complete machine: Protections on battery voltage, overcurrent, over-temperature, reverse connection, reverse charge protection, input overvoltage, under-voltage, overcurrent, short circuit to ground, emergency shutdown, insulation alarm and fault state early warning.
	Parts and components: Charging connector temperature protection, module overheating protection, electronic lock protection, lightning protection, leakage protection, door opening protection.
Charger characteristics	Network	4G/WIFI/LAN	4G/ WIFI /LAN	4G/ WIFI /LAN
Charger characteristics	Touch screen	7-inch	7-inch	7-inch
Service environment	Protection grade	IP55	IP55	IP55
	Temperature	-30℃～+55℃	-30℃～+55℃	-30℃～+55℃
	Humidity	5～95%	5～95%	5～95%
	Height	≤2500m	≤2500m	≤2500m
	Noise	≤65dB	≤65dB	≤65dB

Unfold

Features

Good Safety Guarantee

More than 50 software and hardware protection functions in terms of personnel safety, vehicle safety, equipment safety, etc. form an all-round active safety protection system.

Longer Service Life

The plugging and unplugging life of the charging plug reaches more than 12,000 times, which is 20% higher than China's national standard.

Higher Protection Grade

The protection grade of the charging plug can reach IP67, ensuring the safety of operators in extreme weather; With labyrinth air inlet and anti-backflow air duct design, the protection grade of the whole machine reaches IP55, which is superior to the industry level.

Stronger Environmental Adaptability

Components can work within a wide temperature range, and the machine with temperature controlled intelligently can work within the range of -30℃ - 55℃ and be used in severely hot and severely cold areas; The main control system is self-developed, and the power module is customized. They can function normally in highland areas with an altitude up to 5,000m.
