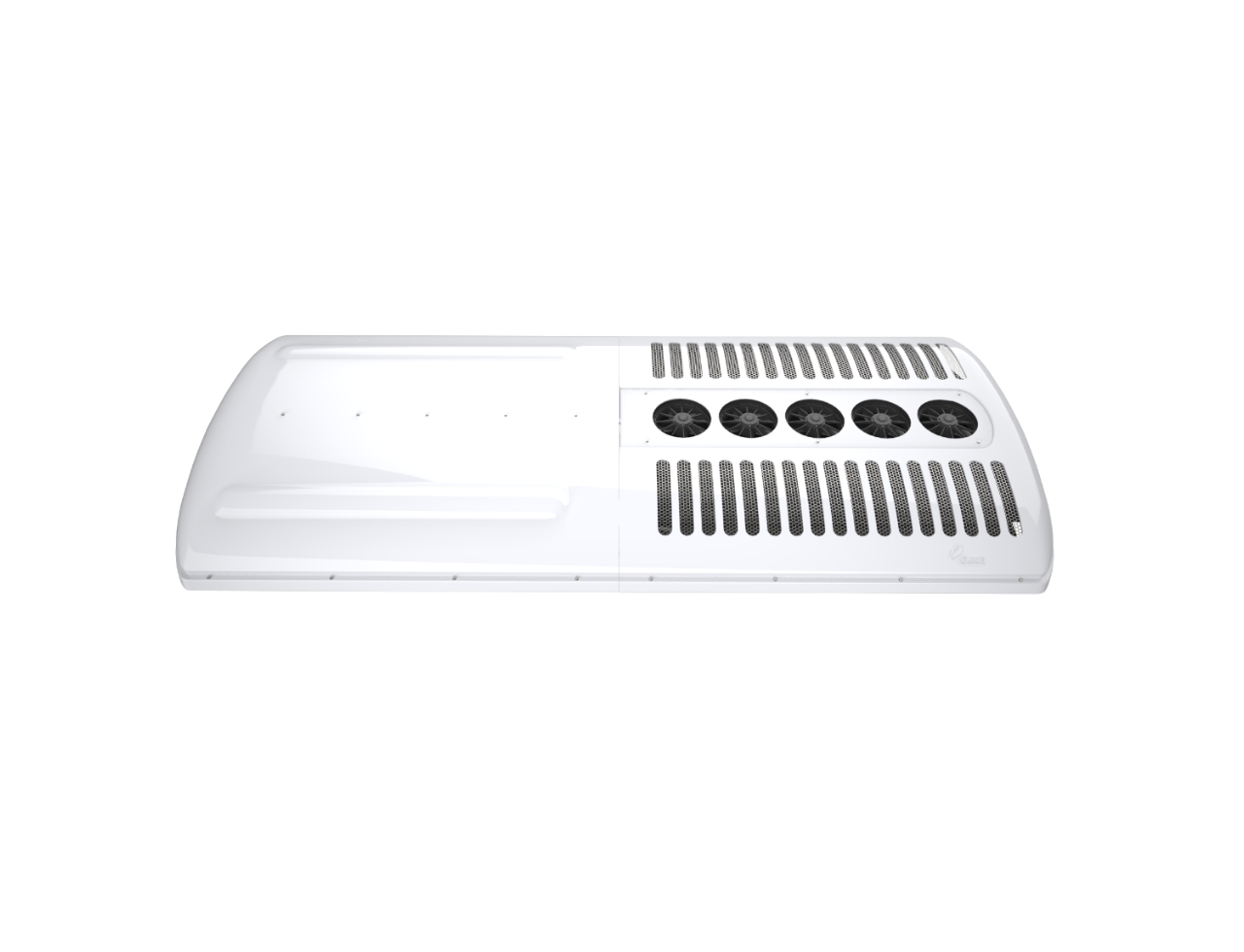

RussianBFFD Engine Bus Air Conditioner Series
Copper tube aluminum sheet split roof-mounted A/C, suitable for 8-13m long-distance coaches.
-
8-13m
Application vehicle length
-
24000-32000 kcal/h
Cooling capacity
-
R134a
Refrigerant
-
170-255 kg
Weight
Technical Parameters
| Model | BFFD-04 | BFFD-05 | BFFD-06 |
| Cooling capacity |
24000kcal/h 28kW 96000BTU/h |
28000kcal/h 33kW 112000BTU/h |
32000kcal/h 37kW 127000BTU/h |
| Maximum energy consumption (A) | 75 | 85 | 95 |
| Evaporation air volume (m³/h) | 4000（4pcs） | 6000（6pcs） | 8000（8pcs） |
| Condensing air volume (m³/h) | 6000（3pcs） | 8000（4pcs） | 10000（5pcs） |
| Compressor displacement (cc) | 470 | 550-560 | 647 |
| Refrigerant | R134a | R134a | R134a |
| Weight (kg) | 170 | 215 | 255 |
| Dimension (mm) LxWxH | 3335*1820*195 | 3804*1902*195 | 4435*1902*195 |
| Application | 8-9m | 10-11m | 12-13m |
Unfold
Features
Customer Cases
-
Cling Worked with Firo Star Plus to Supply Bus A/C to Ecuador Buses
With high quality and excellent cooling effect,BUS A/C are welcome in Ecuador Market.
-
Bus A/C on Busscar Bus
Since 2017, Cling Bus A/C have been installed on the Busscar Buses. It is our honor to provide Busscar with qualified HVAC and Cling have put a lot of
