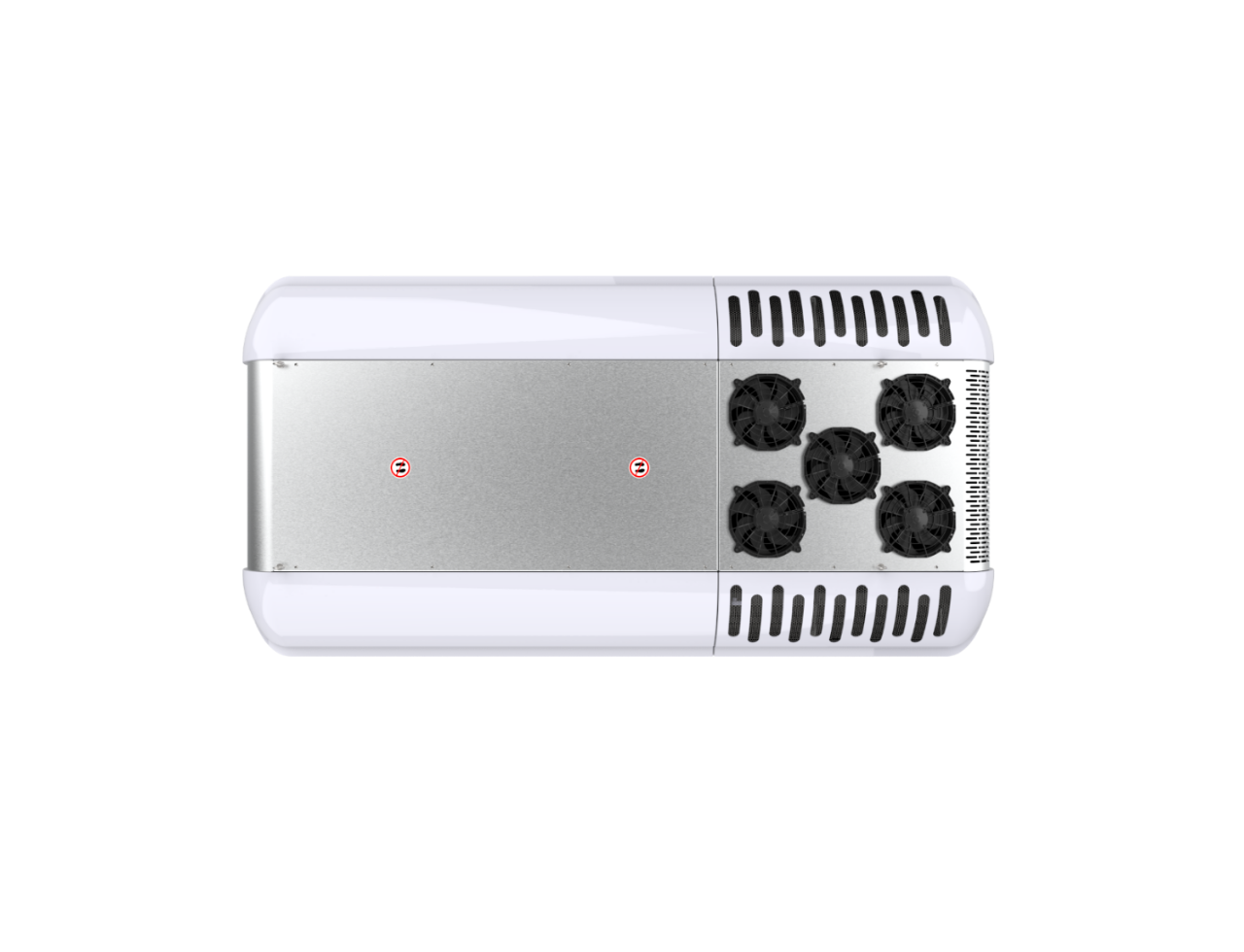

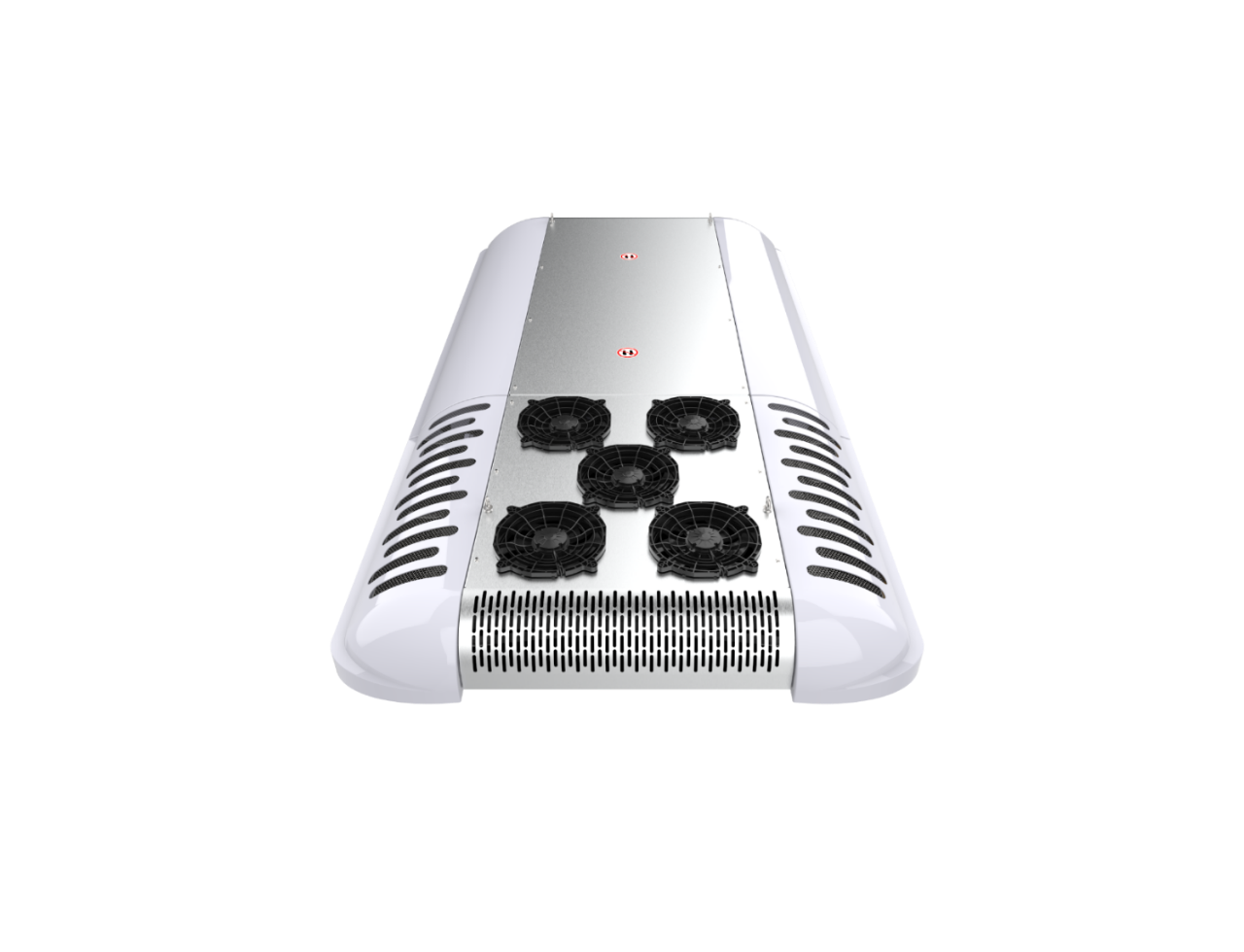

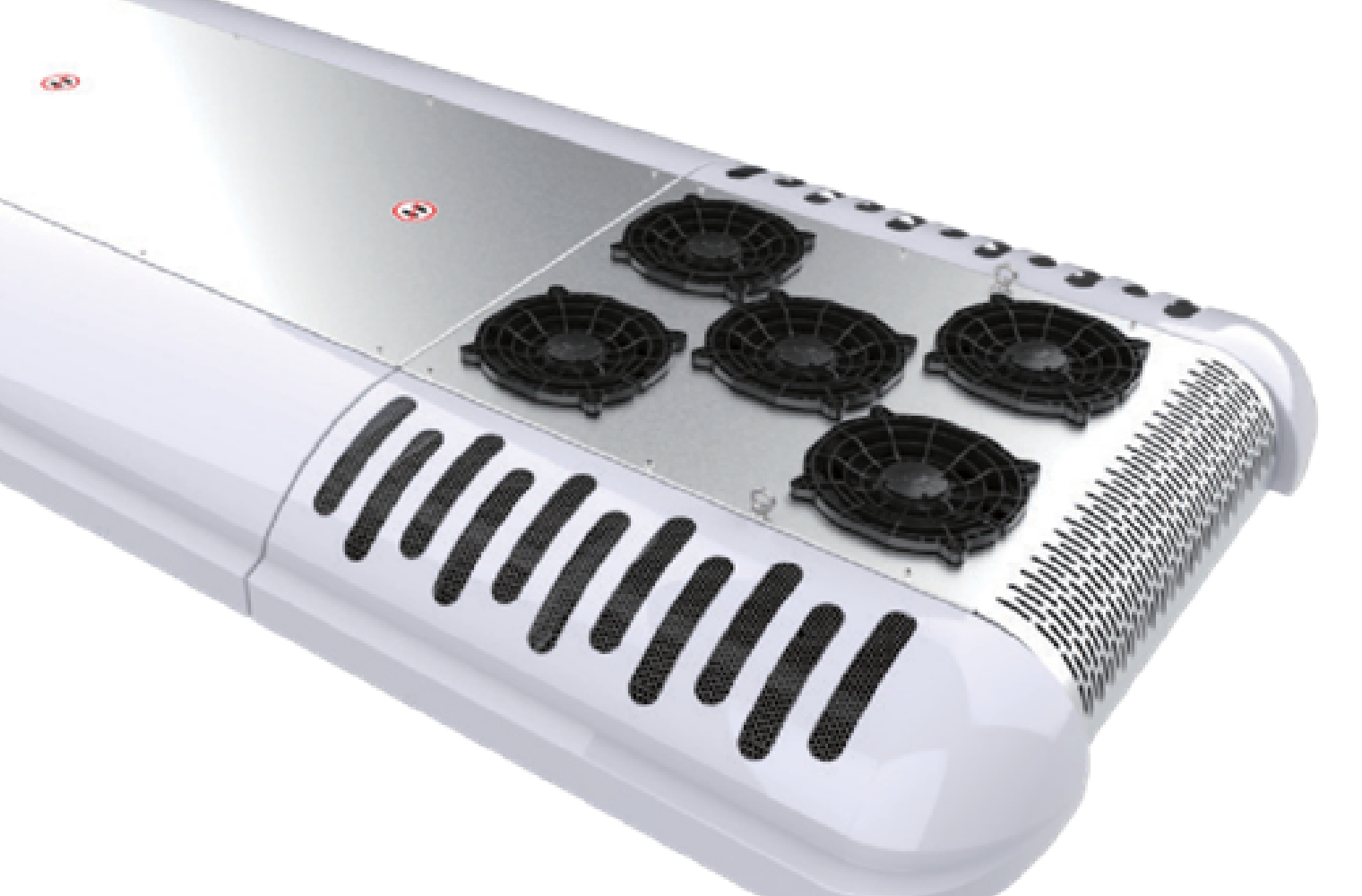

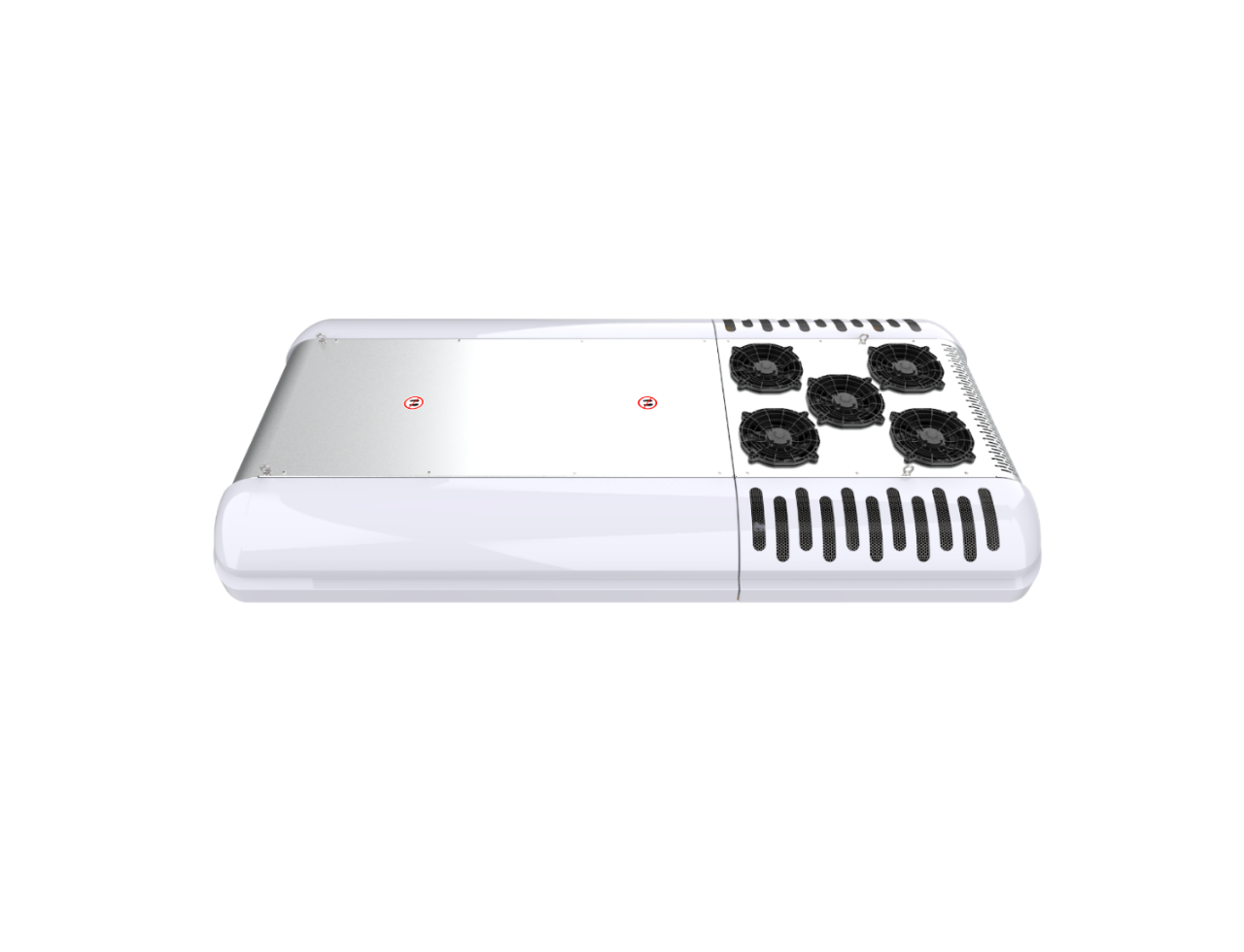

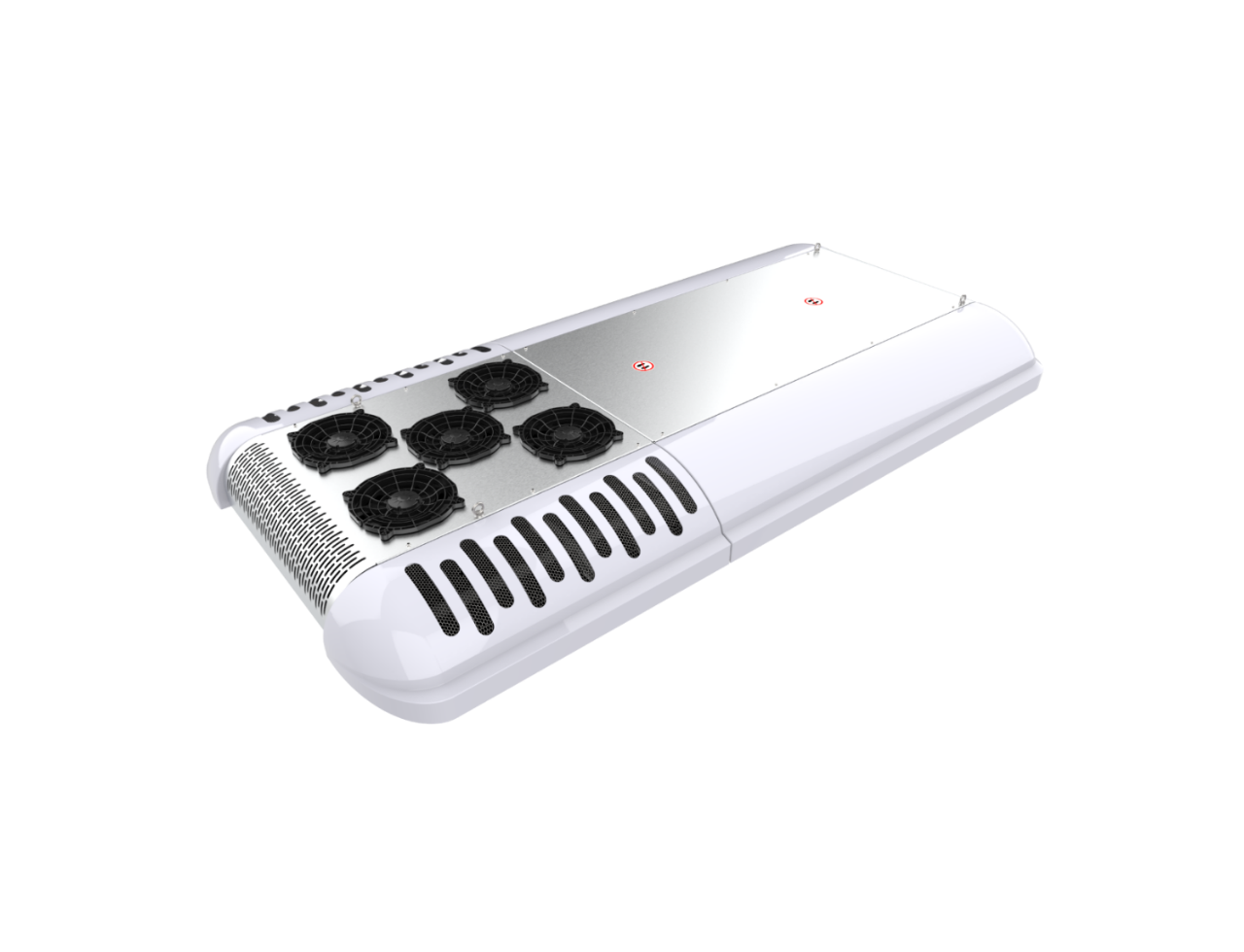

CM350 Rooftop Narrow Engine Bus Air Conditioner

The product is suitable for 11-13m narrow body commuters and tourism coaches.

11-13m narrow body bus

Application models
32000 kcal/h

Cooling capacity
R134a

Refrigerant
170 kg

Weight

Get a quote WhatsApp

Technical Parameters

Model	CM350
Cooling capacity	32000kcal/h 37kW 127000BTU/h
Maximum energy consumption (A)	95
Evaporation air volume (m³/h)	6000（6pcs）
Condensing air volume (m³/h)	10000（5pcs）
Compressor displacement (cc)	647
Refrigerant	R134a
Weight (kg)	170
Dimension (mm) LxWxH	33501720250
Application	11-13m

Unfold

Features

Lightweight

Narrow body + extremely lightweight design structure, reducing weight by 15%.

Quick Replacement Design

The evaporator fan, condenser fan, dry filter and other parts are designed with quick-release structure to facilitate maintenance.

High Efficiency & Quiet

The light omni-directional fluid simulation optimization design reduces the mutual influence between fans, effectively improves efficiency and reduces noise.
